QK16R

AGT Industrial QK16R

Also listed as AGT-KH16R, CFG QK16R (marketplace label), QK-16R, QK16R (shared manual)

1,650 mm5 ft 5 inDig depth

968 mm38.1 inWidth

3,000 mm9 ft 10 inReach

0.016 m³0.57 cu ftBucket capacity

Manuals1 free preview Parts2 parts Fix a problemGeneral guides Mods18 guides

Check your machine plate before ordering parts. How to find it

Manuals 1

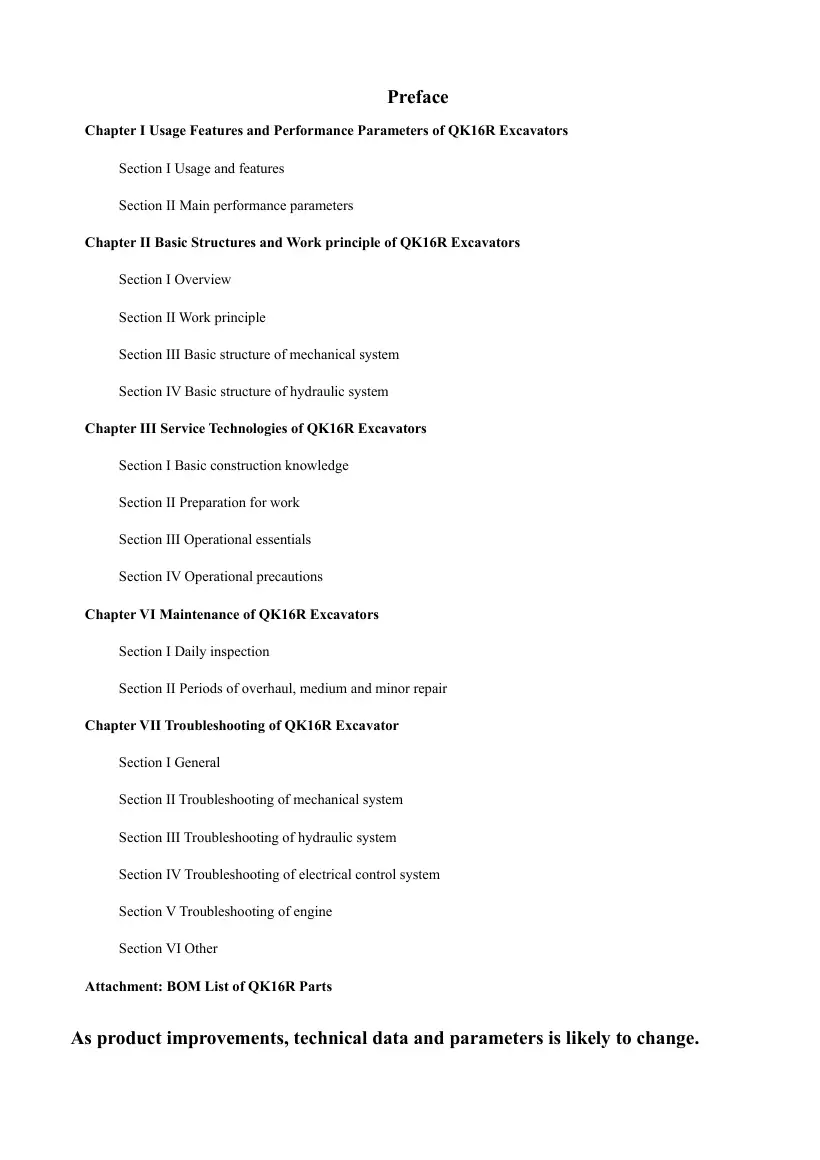

AGT-KH16R/QK16R Manual47 pages · PDF · Free previewThis model

Send us a manual

Parts 2

Track bottom rollerJGCL-08Listed for this model

AGT travel motor — BM6-CA-310 variantAGT-12TMOTORAGT Industrial-wide part

Browse parts by type

Fix a problem 5

Cranks but won't startFuel filter, glow plugs, safety lever

Hydraulics slow or weakFluid, filters, relief valve

Cold-weather startingBattery, fuel gelling, warm-up

Tracks keep coming offTension, idlers, sprockets

Upper won't swing or clunksSwing motor bolts, gear, grease

All troubleshooting

Specifications

Bucket capacity: 0.016 m³ (0.57 cu ft)
Max digging height: 2,400 mm (7 ft 10 in)
Max dumping height: 1,670 mm (5 ft 6 in)
Max digging depth: 1,650 mm (5 ft 5 in)
Max vertical digging depth: 1,500 mm (4 ft 11 in)
Max excavation distance (reach): 3,000 mm (9 ft 10 in)
Overall lxwxh: 2,784 mm (9 ft 2 in) x968x2143
Tail swing radius: 800 mm (31.5 in)
Track gauge (wheel distance): 760 mm (29.9 in)
Max bucket digging force: 7.2 kN (1,619 lbf)
Max arm digging force: 4.6 kN (1,034 lbf)
Engine: RATO
Fuel tank: 7 L (7.4 US qt)
Hydraulic oil change quantity: 16.5 L (4.4 US gal)
Overall width: 968 mm (38.1 in)
Published price: USD 4,249.99
Engine oil change interval: every 500 h (with filter)
Hydraulic oil change interval: 2000 h
Slew bearing greasing: slewing bearing every 250 h
Bolt torque: slew bearing: M20, 570±60
Bolt torque: travel motor & sprocket: M16, 252±39.2 (units as above)
Track tension: no sag value given
