Teal AGT H15R mini excavator, three-quarter view

AGT Industrial H15R

Also listed as AGT-H15R, CFG-labelled AGT-H15R listing, H15-R

13.5 hp RATO10.1 kWEngine power

1,650 mm5 ft 5 inDig depth

1,000 mm3 ft 3 inWidth

2,850 mm9 ft 4 inReach

0.025 m³0.88 cu ftBucket capacity

Manuals2 free previews Parts4 parts Fix a problemGeneral guides Mods18 guides

Check your machine plate before ordering parts. How to find it

Manuals 2

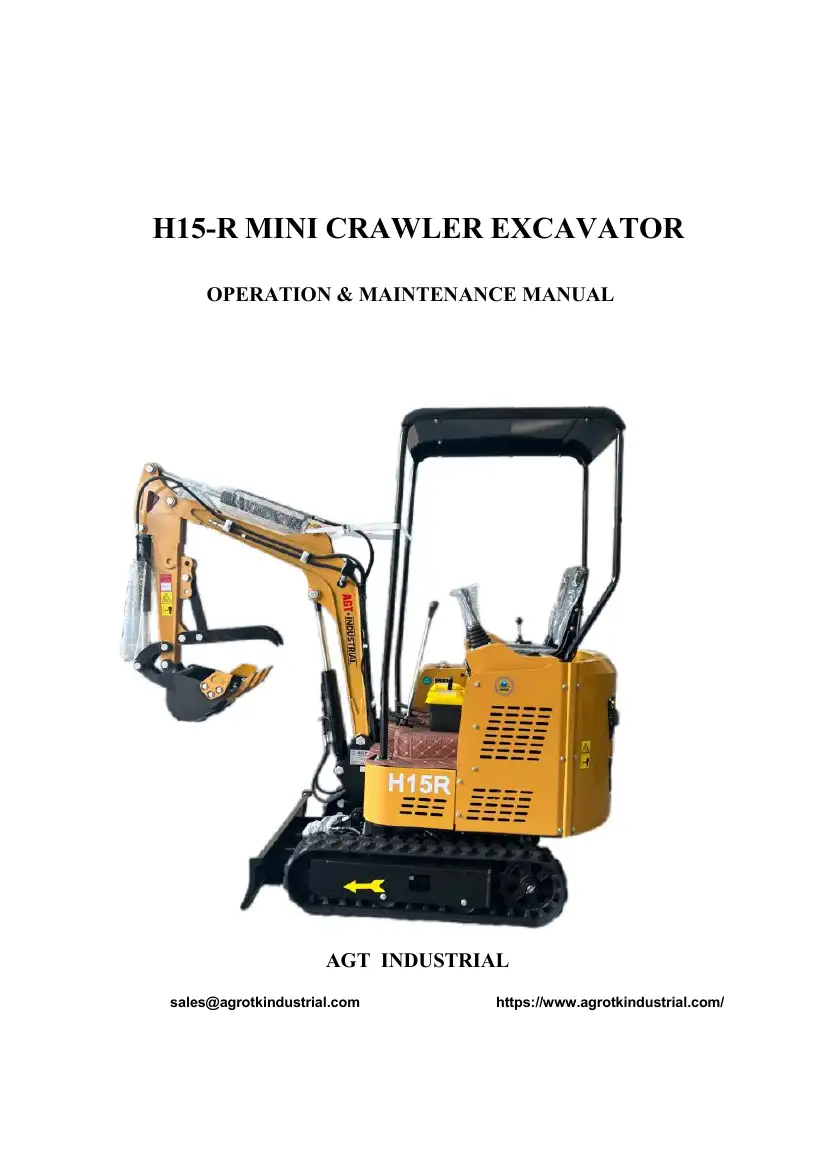

AGT-H15R Manual53 pages · PDF · Free previewThis model

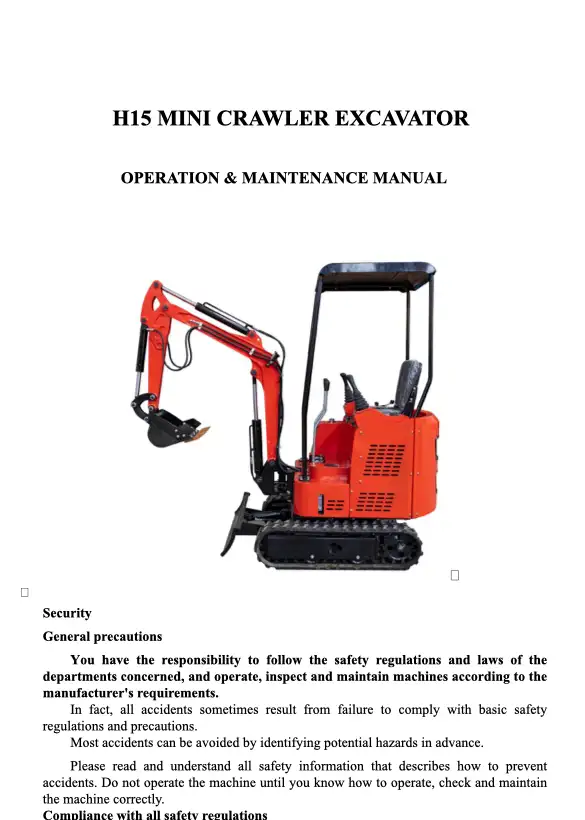

AGT-H15 Manual111 pages · Document · Free previewThis model

Send us a manual

Parts 4

Tandem gear pumpSLCLB / PGP5106G3LPListed for this model

Rubber trackH12-QH12LD / LD-SC180X72X37 / LD-SCNM180X72X37Listed for this model

Rubber trackH12-QH12LDListed for this model

AGT travel motor — BM6-CA-310 variantAGT-12TMOTORAGT Industrial-wide part

Browse parts by type

Fix a problem 5

Cranks but won't startFuel filter, glow plugs, safety lever

Hydraulics slow or weakFluid, filters, relief valve

Cold-weather startingBattery, fuel gelling, warm-up

Tracks keep coming offTension, idlers, sprockets

Upper won't swing or clunksSwing motor bolts, gear, grease

All troubleshooting

Specifications

Price: 5,681.95
Engine: R420D 11.5 hp (8.6 kW)
Working weight: 1,050 kg (2,315 lb)
Bucket capacity: 0.025 m³ (0.88 cu ft)
Max digging height: 2,610 mm (8 ft 7 in)
Max unloading height: 1,850 mm (6 ft 1 in)
Max digging depth: 1,650 mm (5 ft 5 in)
Max digging radius: 2,850 mm (9 ft 4 in)
Overall lxwxh: 2,140 mm (7 ft 0 in) x1000x2210
Dozer blade wxh: 1,000 mm (3 ft 3 in) x400
Fuel tank: 6.6 L (7 US qt)
Hydraulic oil tank: 18 L (4.8 US gal)
Side swing: not equipped
Track: 180 / 72 mm (7.1 in / 2.8 in) V/37
Engine description: single-cylinder air-cooling gasoline RATO 420 engine
Advertised power: 13.5 hp (10.1 kW) RATO
Overall width: 1,000 mm (3 ft 3 in)
Published price: USD 5,681.95 (agtequipment) / USD 5,980.99 (agrotk)
Engine oil change interval: every 500 h (with filter)
Hydraulic oil change interval: 2000 h
Slew bearing greasing: slewing bearing every 250 h
Bolt torque: slew bearing: M20, 570±60
Bolt torque: travel motor & sprocket: M16, 252±39.2 (units as above)
Track tension: no sag value given
Track tension rocky ground: same guidance
Hydraulic tank capacity: 18
