H12R

AGT Industrial H12R

Also listed as AGT-H12R, CFG H12R (auction label)

907 kg2,000 lbOperating weight

Manuals1 free preview Parts2 parts Fix a problemGeneral guides Mods18 guides

Check your machine plate before ordering parts. How to find it

Manuals 1

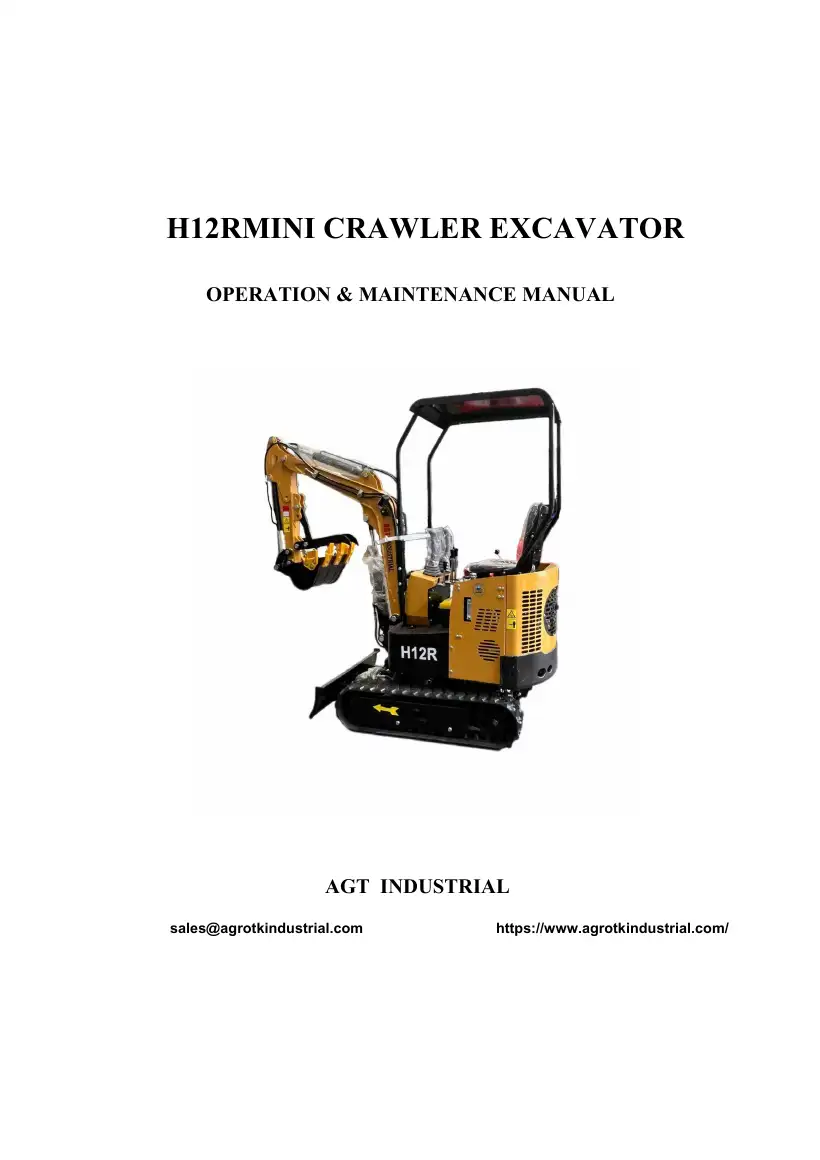

AGT-H12R Manual50 pages · PDF · Free previewThis model

Send us a manual

Parts 2

Rubber trackH12-QH12LDListed for this model

AGT travel motor — BM6-CA-310 variantAGT-12TMOTORAGT Industrial-wide part

Browse parts by type

Fix a problem 5

Cranks but won't startFuel filter, glow plugs, safety lever

Hydraulics slow or weakFluid, filters, relief valve

Cold-weather startingBattery, fuel gelling, warm-up

Tracks keep coming offTension, idlers, sprockets

Upper won't swing or clunksSwing motor bolts, gear, grease

All troubleshooting

Specifications

Engine: Rato R420D, 13.5 hp (10.1 kW)
Max unloading height: 1,780 mm (5 ft 10 in)
Price: 5,090.49
Fuel tank: 7 L (7.4 US qt)
Operating weight: 2,000 lb (907 kg)
Engine oil change interval: every 500 h (with filter)
Hydraulic oil change interval: 2000 h
Slew bearing greasing: slewing bearing every 250 h
Bolt torque: slew bearing: M20, 570±60
Bolt torque: travel motor & sprocket: M16, 252±39.2 (units as above)
Track tension: no sag value given
Track tension rocky ground: 'Loosen the track a little than the usual' on stony roads

Similar & related machines

No closely related machines recorded yet.

Mods for the H12R

Operator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
