Red and grey AGT MX15R mini excavator, side view

AGT Industrial MX15R

Also listed as AGT-MX15R

898 kg1,980 lbOperating weight

10 kW13.4 hpEngine power

1,769 mm5 ft 10 inDig depth

936 mm36.9 inWidth

3,040 mm10 ft 0 inReach

21.6 L/min5.7 US gal/minHydraulic flow

Manuals1 free preview Parts1 part Fix a problemGeneral guides Mods18 guides

Check your machine plate before ordering parts. How to find it

Manuals 1

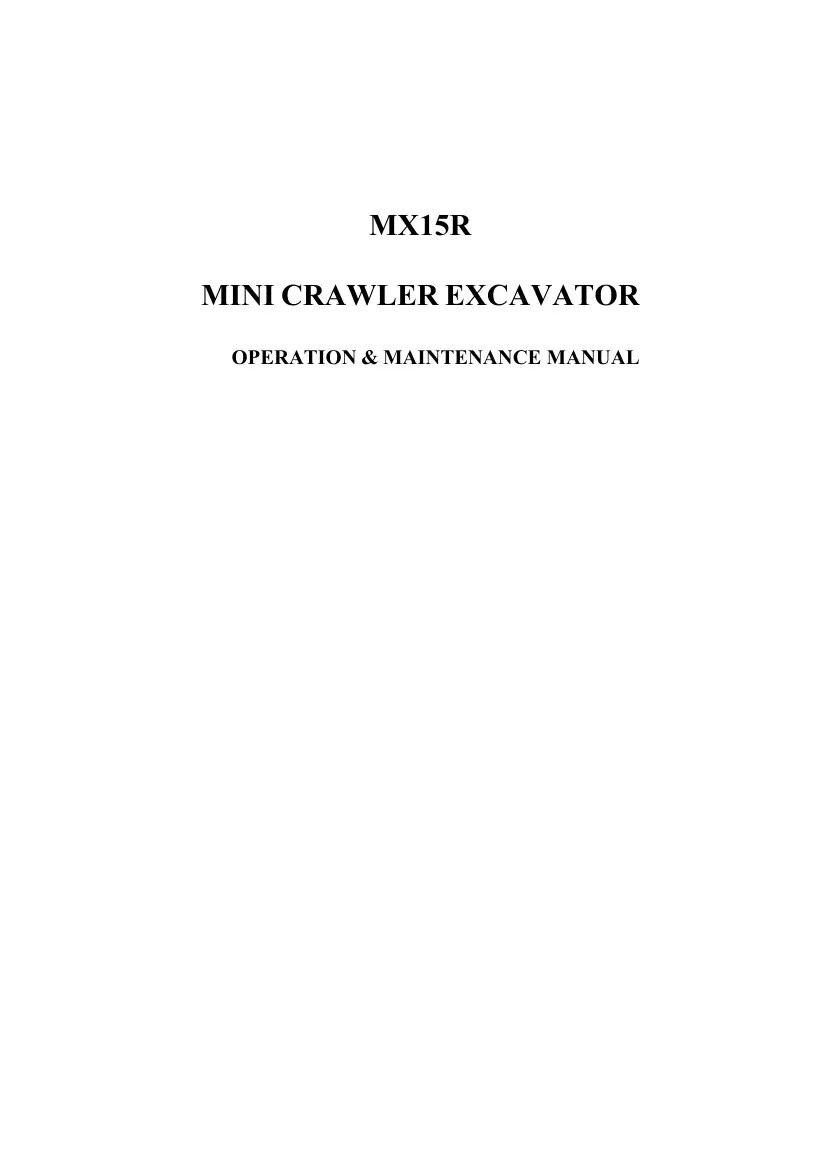

AGT-MX15R Manual44 pages · PDF · Free previewThis model

Send us a manual

Parts 1

AGT travel motor — BM6-CA-310 variantAGT-12TMOTORAGT Industrial-wide part

Browse parts by type

Fix a problem 5

Cranks but won't startFuel filter, glow plugs, safety lever

Hydraulics slow or weakFluid, filters, relief valve

Cold-weather startingBattery, fuel gelling, warm-up

Tracks keep coming offTension, idlers, sprockets

Upper won't swing or clunksSwing motor bolts, gear, grease

All troubleshooting

Specifications

Operating weight: 1,980 lb (898 kg)
Working pressure: 16 MPa (2,321 psi)
Hydraulic tank: 23 L (6.1 US gal)
Max dig depth: 1,769 mm (5 ft 10 in)
Price: 7,000
Engine: RATO
Fuel tank: 7 L (7.4 US qt)
Engine power: 10 kW (13.4 hp)
Max digging reach: 3,040 mm (10 ft 0 in)
Overall width: 936 mm (36.9 in)
Hydraulic flow: 21.6 L/min (5.7 US gal/min)
Track size: 180x72x37
Engine oil change interval: every 500 h (with filter)
Hydraulic oil change interval: 2000 h
Slew bearing greasing: slewing bearing every 250 h
Bolt torque: slew bearing: M20, 570±60
Bolt torque: travel motor & sprocket: M16, 252±39.2 (units as above)
Track tension: no sag value given

Similar & related machines

No closely related machines recorded yet.

Mods for the MX15R

Operator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
