MX12R

AGT Industrial MX12R

Also listed as AGT-MX12R

Briggs & Stratton, Koop, Kubota or ChangchaiPetrol or DieselEngine

Manuals1 free preview Parts3 parts Fix a problemGeneral guides Mods18 guides

Check your machine plate before ordering parts. How to find it

Manuals 1

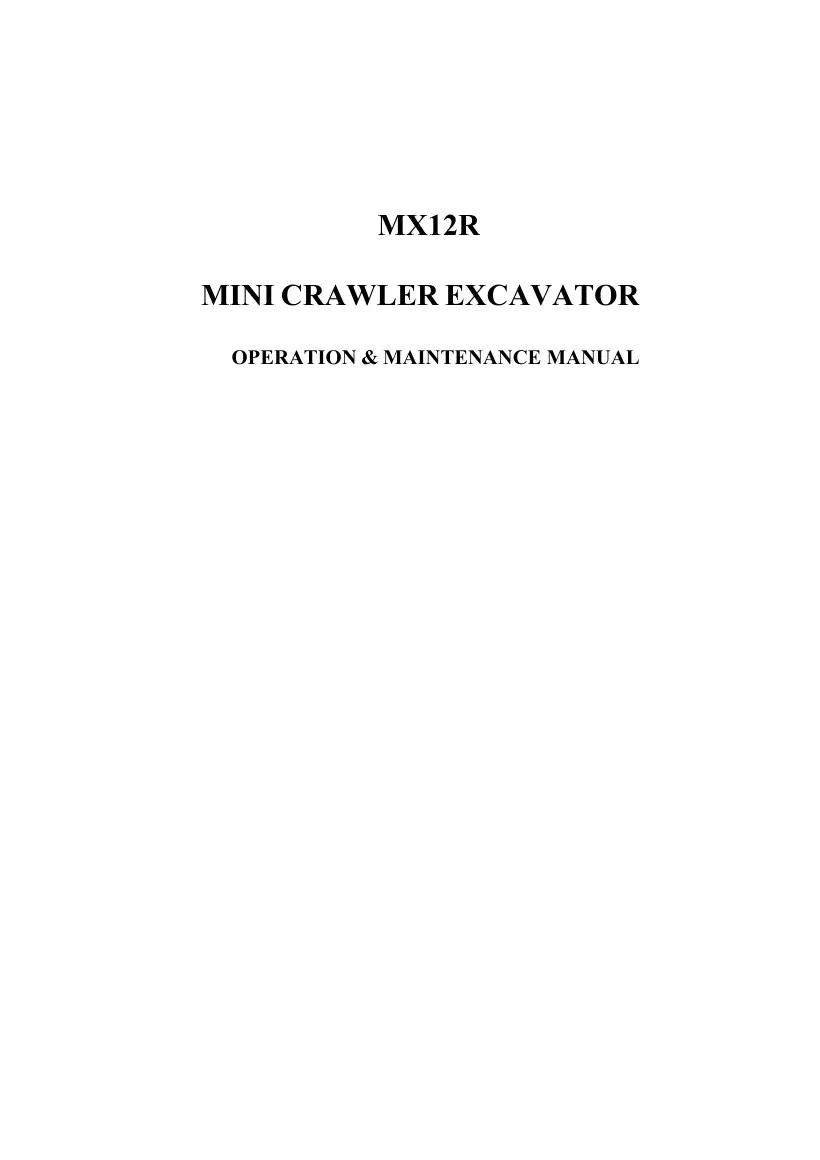

AGT-MX12R Manual44 pages · PDF · Free previewThis model

Send us a manual

Parts 3

Rubber trackH12-QH12LD / LD-SC180X72X37 / LD-SCNM180X72X37Listed for this model

Rubber trackCBT23LDListed for this model

AGT travel motor — BM6-CA-310 variantAGT-12TMOTORAGT Industrial-wide part

Browse parts by type

Fix a problem 5

Cranks but won't startFuel filter, glow plugs, safety lever

Hydraulics slow or weakFluid, filters, relief valve

Cold-weather startingBattery, fuel gelling, warm-up

Tracks keep coming offTension, idlers, sprockets

Upper won't swing or clunksSwing motor bolts, gear, grease

All troubleshooting

Specifications

Fuel tank: 7 L (7.4 US qt)
Track: 180 mm (7.1 in) x 72 x 37
Engine: engine options listed generically (KOOP/CHANGCHAI, B&S, RATO, KUBOTA)
Engine oil change interval: every 500 h (with filter)
Hydraulic oil change interval: 2000 h
Slew bearing greasing: slewing bearing every 250 h
Bolt torque: slew bearing: M20, 570±60
Bolt torque: travel motor & sprocket: M16, 252±39.2 (units as above)
Track tension: no sag value given
Slew bearing grease points: 2 nipples
Charging output: alternator rating not provided

Similar & related machines

No closely related machines recorded yet.

Mods for the MX12R

Operator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
