Yuchai YC12
Also listed as U12 (URL slug, meta)
1,000 kg2,205 lbOperating weight
Koop KD192FDieselEngine
10 hp7.5 kWEngine power
1,475 mm4 ft 10 inDig depth
840 mm33.1 inWidth
24 L/min6.3 US gal/minHydraulic flow
Check your machine plate before ordering parts. How to find it
Manuals 1

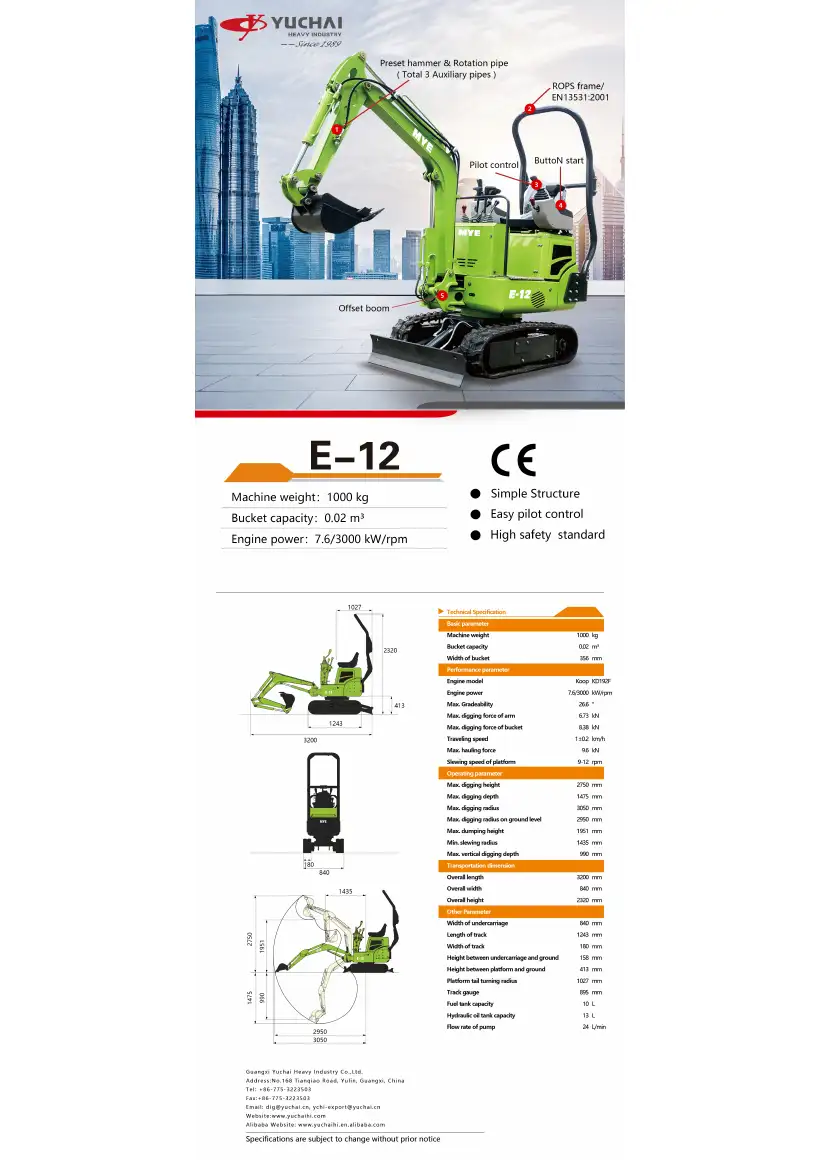

Yuchai E12 specification list (linked as YC12 brochure)1 page · PDF · Free previewThis model
Send us a manualParts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Engine
- Koop KD192F
- Rated power
- 10 hp (7.5 kW)
- Max dig depth
- 1,475 mm (4 ft 10 in)
- Width
- 840 mm (33.1 in)
- Operating weight
- 1,000 kg (2,205 lb)
- Bucket capacity
- 0.02 m³ (0.71 cu ft)
- Auxiliary flow
- 24 L/min (6.3 US gal/min)
- Warranty
- 12 months
- Price
- 12,089 incl GST
- Engine power
- 7.5 kW (10.1 hp)
Similar & related machines
No closely related machines recorded yet.
Mods for the YC12
All modsOperator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
