Yuchai U17
1,720 kg3,792 lbOperating weight
Kubota D905DieselEngine
15.8 hp11.8 kWEngine power
2,310 mm7 ft 7 inDig depth
990 mm39 inWidth
32 L/min8.5 US gal/minHydraulic flow
Check your machine plate before ordering parts. How to find it
Manuals 2

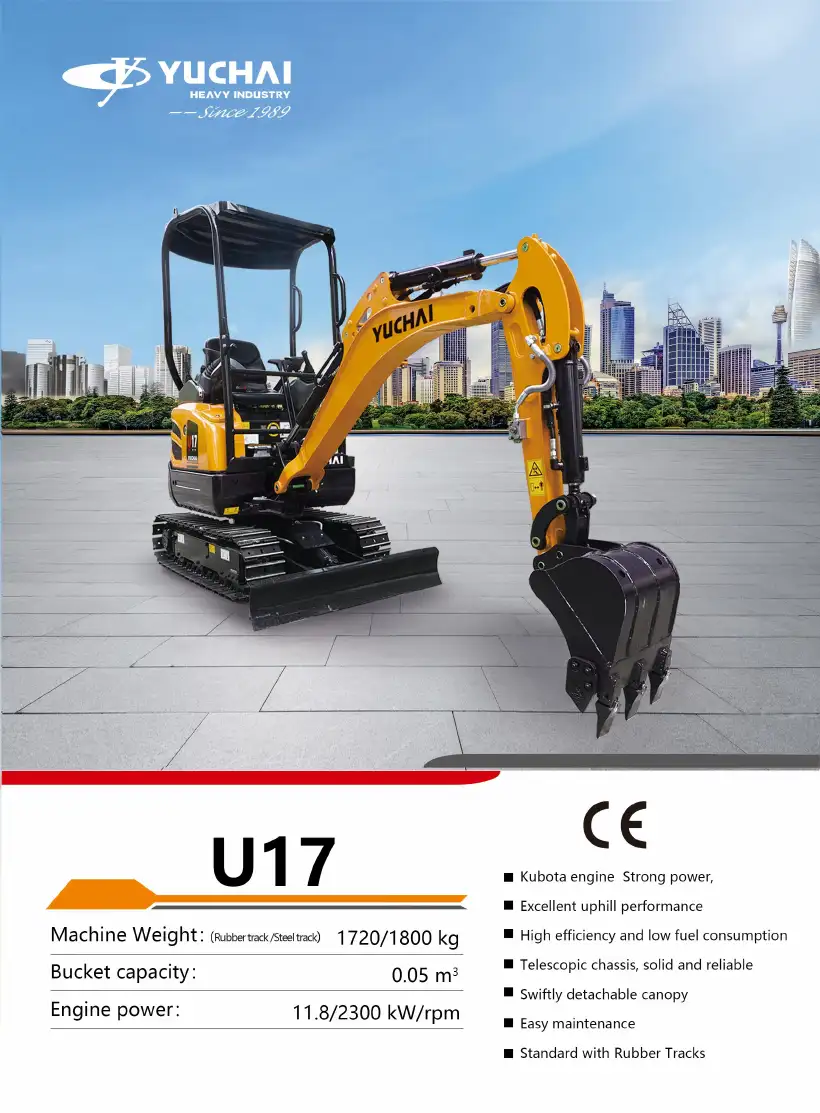

Yuchai U17 brochure2 pages · PDF · Free previewThis model

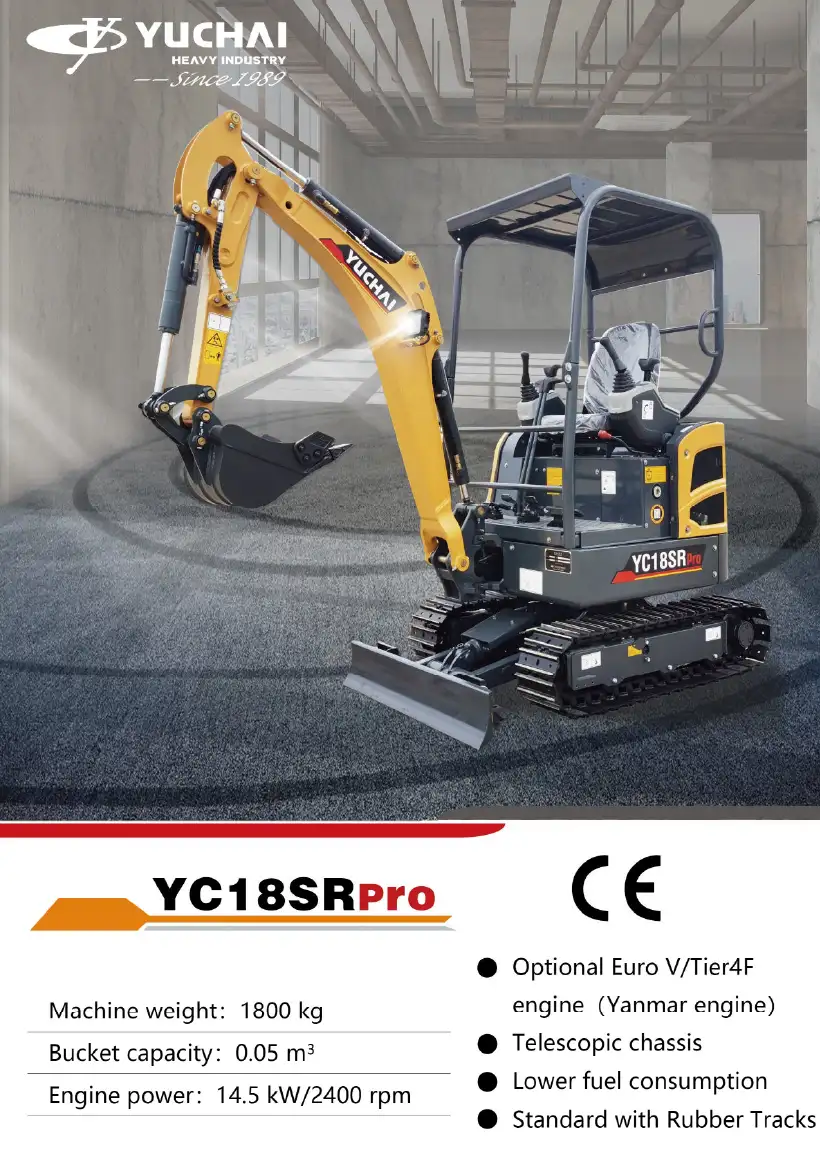

Yuchai YC18SR Pro EN (linked as U17 full specs)2 pages · PDF · Free previewThis model
Send us a manualParts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Engine
- Kubota D905
- Rated power
- 15.8 hp (11.8 kW)
- Max dig depth
- 2,310 mm (7 ft 7 in)
- Width
- 990 mm (39 in)
- Operating weight
- 1,720 kg (3,792 lb)
- Bucket capacity
- 0.05 m³ (1.77 cu ft)
- Travel speed
- 2 / 4 km/h (1.2 mph / 2.5 mph)
- Auxiliary flow
- 32 L/min (8.5 US gal/min)
- Boom swing
- 60° L / 55° R
- Tail swing
- true zero tail swing
- Warranty
- 3 year (body) / 4yr-4000hr
- Price
- 27,489 incl GST
- Engine power
- 11.8 kW (15.8 hp)
- Boom swing left
- 60°
- Boom swing right
- 55°
Similar & related machines
No closely related machines recorded yet.
Mods for the U17
All modsOperator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
