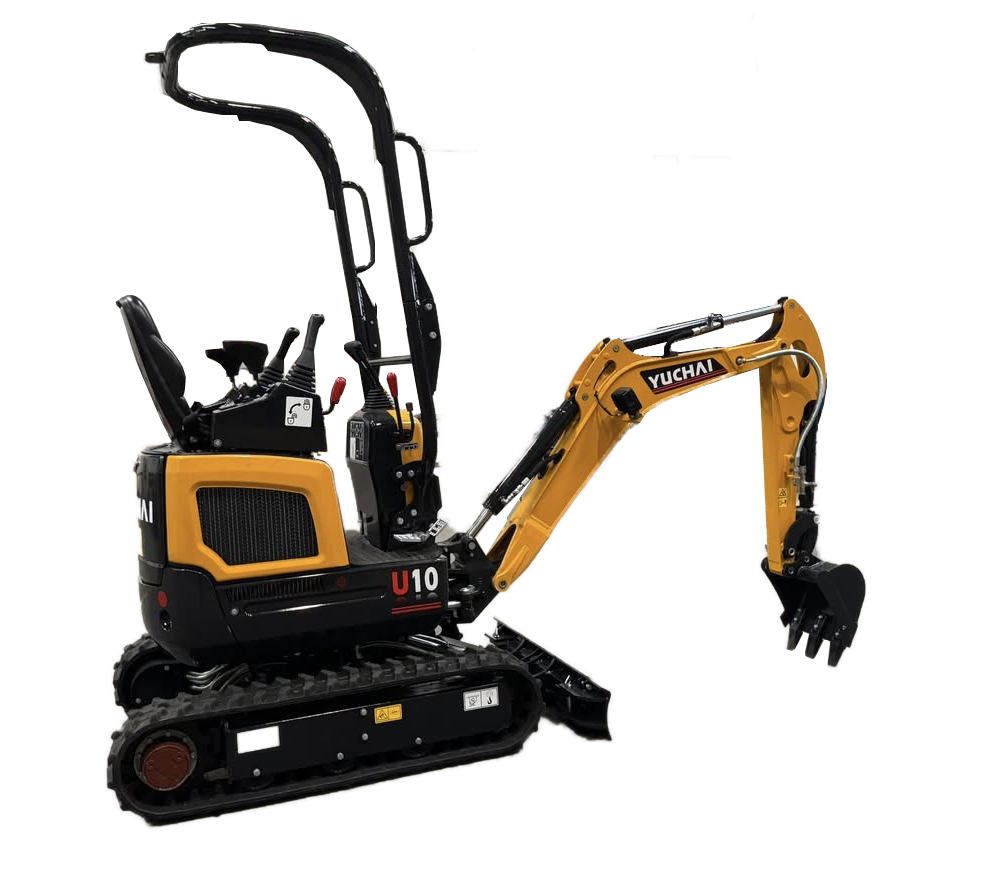

Yuchai U10
1,050 kg2,315 lbOperating weight
Kubota D722DieselEngine
13.9 hp10.4 kWEngine power
1,925 mm6 ft 4 inDig depth
750 / 990 mm29.5 in / 39 inWidth
11 L/min2.9 US gal/minHydraulic flow
Check your machine plate before ordering parts. How to find it
Parts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease

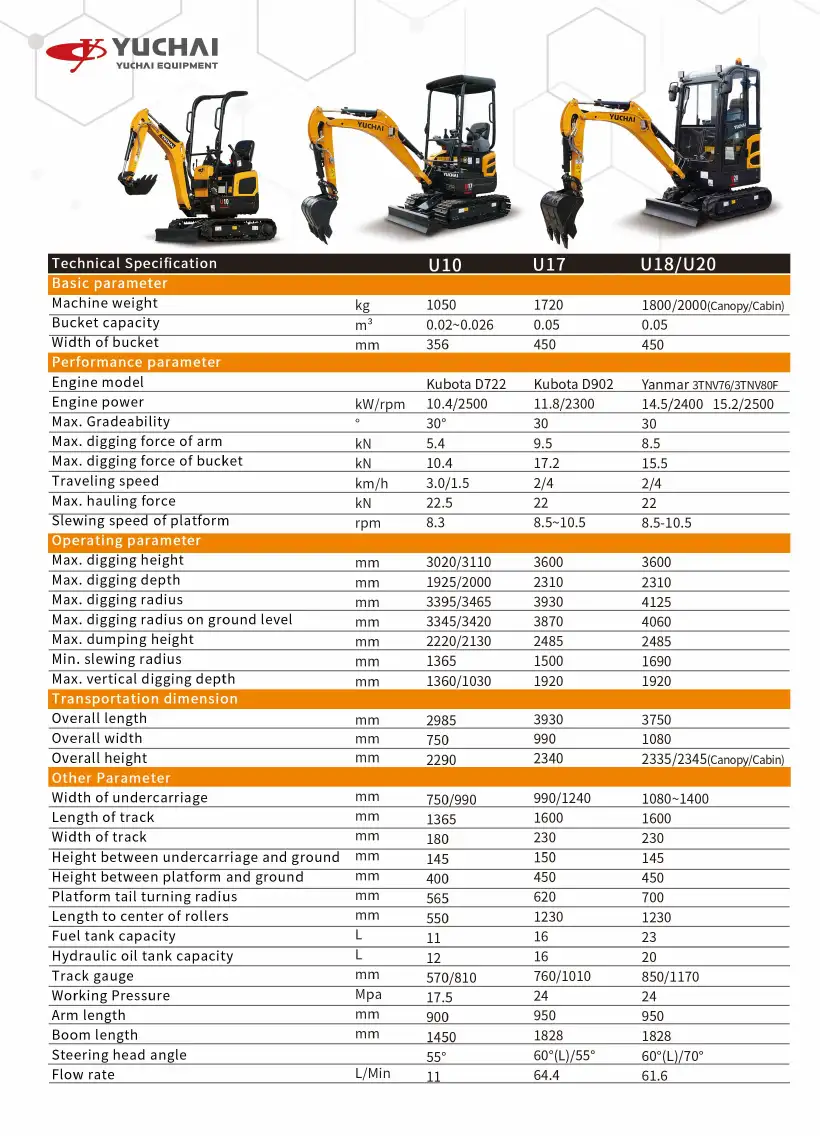

All troubleshootingSpecifications
- Engine
- Kubota D722
- Rated power
- 13.9 hp (10.4 kW)
- Max dig depth
- 1,925 mm (6 ft 4 in)
- Width
- 750 / 990 mm (29.5 in / 39 in)
- Operating weight
- 1,050 kg (2,315 lb)
- Bucket capacity
- 0.02 m³ (0.71 cu ft)
- Travel speed
- 1.5 / 3 km/h (0.9 mph / 1.9 mph)
- Auxiliary flow
- 11 L/min (2.9 US gal/min)
- Boom swing
- 55°
- Warranty
- 4 year / 4000 hr
- Price
- 24,189 incl GST
- Engine power
- 10.4 kW (13.9 hp)
- Overall width
- 750 mm (29.5 in)
- Expanded track width
- 990 mm (39 in)
Similar & related machines
No closely related machines recorded yet.
Mods for the U10
All modsOperator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
