Rhinoceros XN18L
Also listed as XN18-L
1,800 kg3,968 lbOperating weight
Kubota D902DieselEngine
23 hp hp/3600rpm17.2 kWEngine power
2,188 mm7 ft 2 inDig depth
990 – 1,240 mm (adjustable)39 in – 4 ft 1 inWidth
3,616 mm11 ft 10 inReach
Check your machine plate before ordering parts. How to find it
Manuals 1

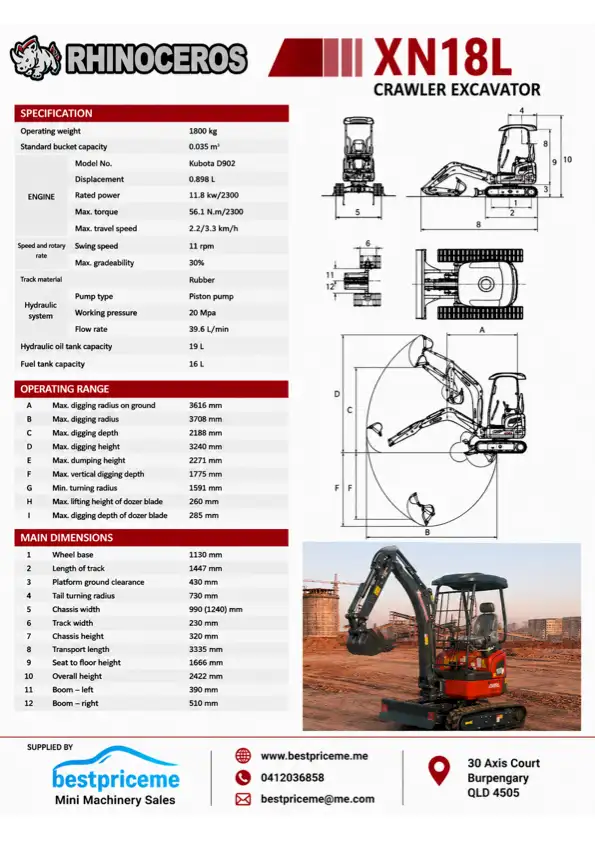

Rhinoceros BPM Rhinoceros XN18L spec sheet (image)1 page · Document · Free previewThis model
Send us a manualParts 5
Short spool-valve/control-lever swivel link38.5mm overall / 30mm eye-to-end / 6mm screw / 29.4mm short screwRhinoceros-wide part
Stick-cylinder seal repair kit — requires WKS02 ram markingRhinoceros-wide part
Boom-cylinder seal repair kit — requires WKS01 ram markingRhinoceros-wide part
Bucket-cylinder seal repair kit — requires WKS03 ram markingRhinoceros-wide part
Poppet hydraulic quick couplers — G3/8 machine / M18 × 1.5 attachment adaptersRhinoceros-wide part
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Manufacturer
- SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
- Operating weight
- 1,800 kg (3,968 lb)
- Engine
- Kubota D902 3cyl diesel
- Emissions
- EPA Final Tier 4
- Rated power
- 23 hp (17.2 kW) hp/3600rpm
- Pump
- KDK variable displacement piston pump
- Pump flow
- 39.6 L/min (10.5 US gal/min)
- Fuel tank
- 19 L (5 US gal)
- Overall width
- 990 – 1,240 mm (39 in – 4 ft 1 in) (adjustable)
- Track width
- 230 mm (9.1 in)
- Track length
- 1,450 mm (4 ft 9 in)
- Tail radius
- 790 mm (31.1 in)
- Max dig depth
- 2,188 mm (7 ft 2 in)
- Max reach ground
- 3,616 mm (11 ft 10 in)
- Bucket capacity
- 0.045 m³ (1.59 cu ft)
- Swing travel motors
- EATON USA
- Price
- 21,990 incl GST
- Engine power
- 17.2 kW (23.1 hp)
- Expanded track width
- 1,240 mm (4 ft 1 in)
- Track size
- 230 mm (9.1 in) wide
- Published price
- AUD 21,990 incl GST (pkg 1)
