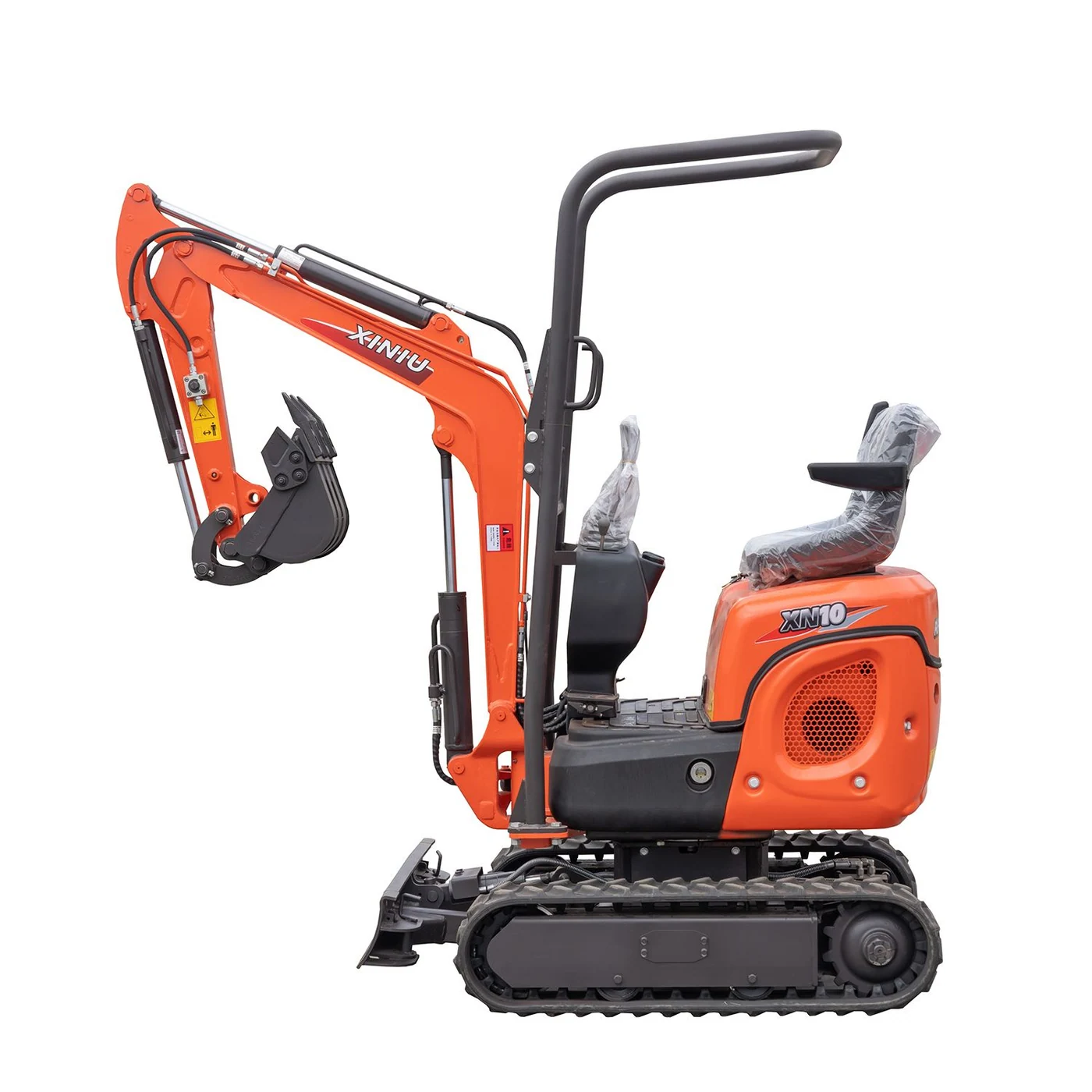

XN10-9Rhinoceros XN10-9
Also listed as Xiniu XN10-9
1,010 kg2,227 lbOperating weight
Koop 192DieselEngine
7.6 kW @ 3000 rpm10.2 hpEngine power
1,580 mm5 ft 2 inDig depth
800 – 950 mm31.5 in – 37.4 inWidth
3,135 mm10 ft 3 inReach
Check your machine plate before ordering parts. How to find it
Manuals 0
No manual for the XN10-9 yetHave one? We'll host it here for other owners.
Parts 5
Short spool-valve/control-lever swivel link38.5mm overall / 30mm eye-to-end / 6mm screw / 29.4mm short screwRhinoceros-wide part
Stick-cylinder seal repair kit — requires WKS02 ram markingRhinoceros-wide part
Boom-cylinder seal repair kit — requires WKS01 ram markingRhinoceros-wide part
Bucket-cylinder seal repair kit — requires WKS03 ram markingRhinoceros-wide part
Poppet hydraulic quick couplers — G3/8 machine / M18 × 1.5 attachment adaptersRhinoceros-wide part
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Operating weight
- 1,010 kg (2,227 lb)
- Engine
- Koop 192, 0.499 L
- Rated power
- 7.6 kW (10.2 hp) @ 3000 rpm
- Pump flow
- 19.5 L/min (5.2 US gal/min)
- Working pressure
- 16 MPa (2,321 psi)
- Hydraulic tank
- 16 L (4.2 US gal)
- Fuel tank
- 11 L (2.9 US gal)
- Chassis width
- 800 – 950 mm (31.5 in – 37.4 in)
- Tail swing radius
- 660 mm (26 in)
- Max dig depth
- 1,580 mm (5 ft 2 in)
- Max reach
- 3,135 mm (10 ft 3 in)
- Boom swing
- L 55 / R 50
- Track width
- 180 mm (7.1 in)
- Price
- 11,990-13,990 incl GST
- Engine power
- 7.6 kW (10.2 hp)
- Overall width
- 800 mm (31.5 in)
- Expanded track width
- 950 mm (37.4 in) (spec) / 940-954 (text)
- Bucket capacity
- 0.02 m³ (0.71 cu ft)
- Boom swing left
- 55°
- Boom swing right
- 50°
