TERROR XVIIITyphon Machinery TERROR XVIII
Also listed as 1802, TYPH-1801, Terror 18
KubotaDieselEngine
Check your machine plate before ordering parts. How to find it
Manuals 1

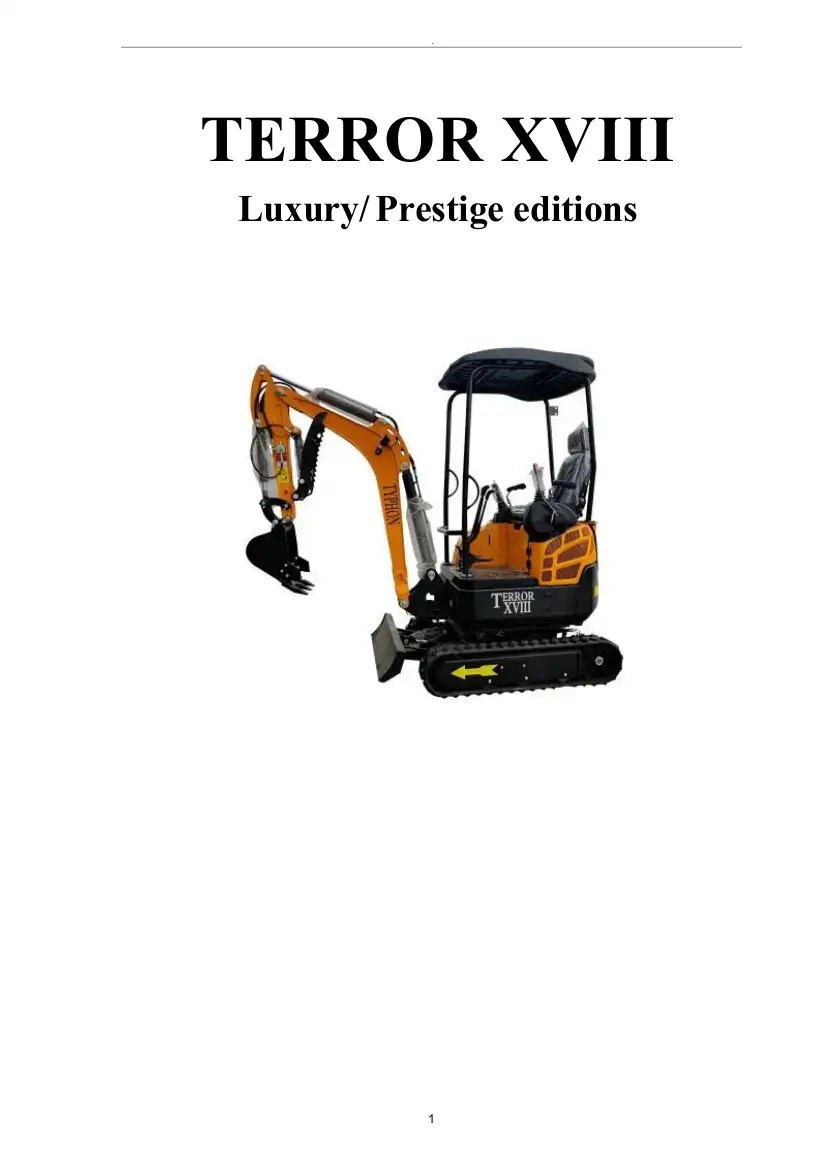

Typhon Machinery TERROR XVIII manual (TYPH-1801/1802)70 pages · PDF · Free previewThis model
Send us a manualParts 4
Typhon 1-ton tipping link
TYAP-0071Typhon Machinery-wide partTyphon 1-ton bucket link
TYAP-0072Typhon Machinery-wide partTyphon attachment pins — seller states 24 × 160 mm
TYAP-0090Typhon Machinery-wide partTyphon-endorsed travel motor — photo shows BM6-390
TYAP-0050Typhon Machinery-wide partFix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Engine
- KUBOTA turbo-supercharged engine, Europe Standard I
- Travel reducer oil
- 1.8 kg (4 lb)
- Swing reducer oil
- 3.5 kg (8 lb)
- Track tension sag
- 40 – 50 mm (1.6 in – 2 in) gap between straight rod (sprocket to idler) and track top
- Glow-plug preheat (kubota turbo)
- Turn key ANTICLOCKWISE to first position to preheat
- Engine oil grade by temperature
- CD SAE: 15W-40 (-15 to 50 °C)
- Hydraulic oil grade
- 32# or 46# anti-wear in winter
Similar & related machines
No closely related machines recorded yet.
Mods for the TERROR XVIII
All modsOperator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
