Typhon Machinery TERROR XIX STORM

Also listed as TYPH-1901, TYPH-1901 PRO (Terror XIX Pro Storm), Terror 19

Kubota D902DieselEngine
11.8 kW15.8 hpEngine power
2,137 mm7 ft 0 inDig depth
3,370 mm11 ft 1 inReach
22 L/min +6.65.8 US gal/minHydraulic flow
16 MPa2,321 psiWorking pressure

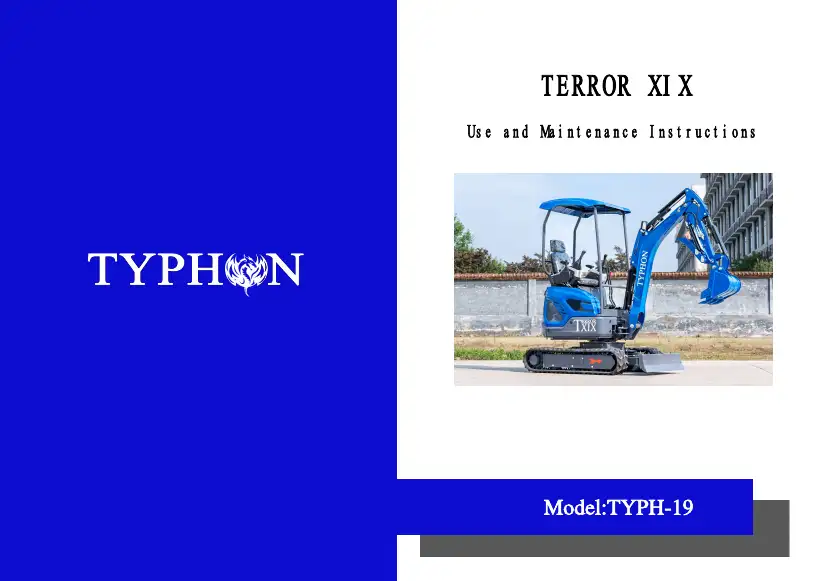

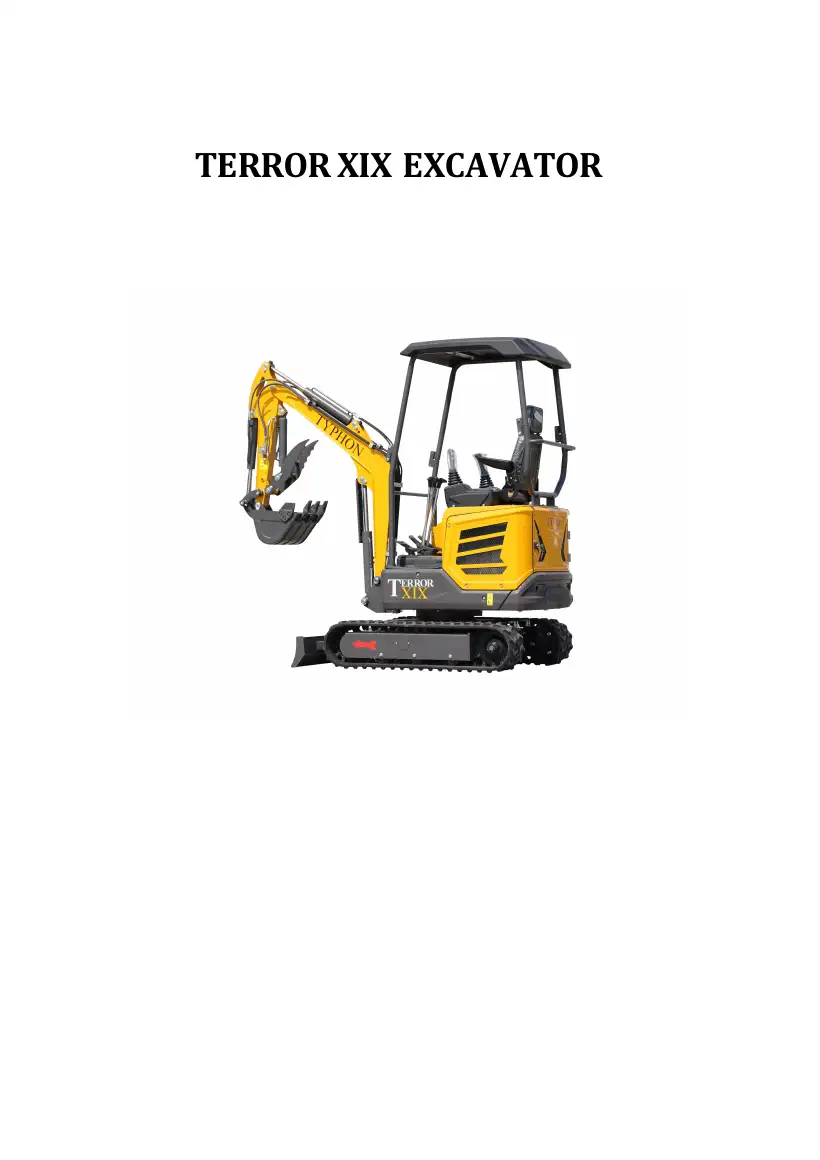

Manuals2 free previews Parts4 parts Fix a problemGeneral guides Mods18 guides

Check your machine plate before ordering parts. How to find it

Parts 4

Typhon 1-ton tipping linkTYAP-0071Typhon Machinery-wide part
Typhon 1-ton bucket linkTYAP-0072Typhon Machinery-wide part
Typhon attachment pins — seller states 24 × 160 mmTYAP-0090Typhon Machinery-wide part
Typhon-endorsed travel motor — photo shows BM6-390TYAP-0050Typhon Machinery-wide part
Browse parts by type

Specifications

Weight
1,900 kg (4,189 lb)
Engine
Kubota D902
Rated output
11.8 kW (15.8 hp) @ 2500 r/min
Max torque
42.9 N.m @ 2000 r/min
Max digging depth
2,137 mm (7 ft 0 in)
Max vertical digging depth
2,122 mm (7 ft 0 in)
Max reach
3,370 mm (11 ft 1 in)
Max ground reach
3,295 mm (10 ft 10 in)
Total width transport/operation
1,000 / 1,250 mm (3 ft 3 in / 4 ft 1 in)
Track centre distance
1,156 mm (3 ft 10 in)
Track shoe width
230 mm (9.1 in)
Track length
1,472 mm (4 ft 10 in)
Bucket capacity
0.035 m³ (1.24 cu ft)
Bucket width
430 mm (16.9 in) with side teeth / 400 without
Hydraulic flow
22 L/min (5.8 US gal/min) +6.6
Working pressure
16 MPa (2,321 psi)
Fuel tank
11 L (2.9 US gal)
Hydraulic tank
21 L (5.5 US gal)
Engine oil capacity
3.2 L (3.4 US qt)
Travel speed
1.3 km/h (0.8 mph)
Slew speed
8
Track tension type
grease cylinder
Track width
9.1 in (231 mm) in
Max dig depth
6 in (152 mm) ft 6.7 in
Engine power
11.8 kW (15.8 hp)
Expanded track width
1,250 mm (4 ft 1 in)
Track size
230 mm (9.1 in) rubber, length 1472
