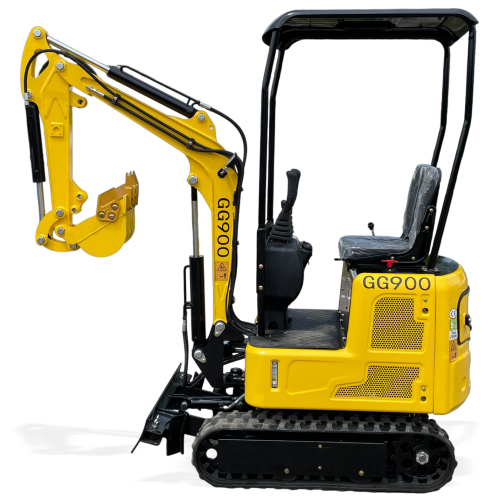

Günter Grossmann GG900
Also listed as GG 900
900 kg1,984 lbOperating weight
Kubota D722DieselEngine
10.3 kW13.8 hpEngine power
1,650 mm5 ft 5 inDig depth
2,890 mm9 ft 6 inReach
16.5 MPa2,393 psiWorking pressure
Check your machine plate before ordering parts. How to find it
Manuals 2
Günter Grossmann Instrukcja Obsługi GG90067 pages · PDF · Free previewThis model
Günter Grossmann GG900 PDF3 pages · PDF · Free previewThis model
Send us a manualParts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Engine
- Kubota D722 14 KM
- Operating weight
- 900 kg (1,984 lb)
- Engine power
- 10.3 kW (13.8 hp)
- Max digging depth
- 1,650 mm (5 ft 5 in)
- Max digging reach
- 2,890 mm (9 ft 6 in)
- Bucket capacity
- 0.025 m³ (0.88 cu ft)
- Working pressure
- 16.5 MPa (2,393 psi)
- Track size
- 200 mm (7.9 in) wide
- Published price
- 26,000 PLN net
Similar & related machines
No closely related machines recorded yet.
Mods for the GG900
All modsOperator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
