MW Tools MG18F
Also listed as 829701202 (order no.)
1,800 kg3,968 lbOperating weight
Kubota D722DieselEngine
10.2 kW13.7 hpEngine power
2,050 mm6 ft 9 inDig depth
1,100 mm3 ft 7 inWidth
3,130 mm10 ft 3 inReach
Check your machine plate before ordering parts. How to find it
Manuals 2

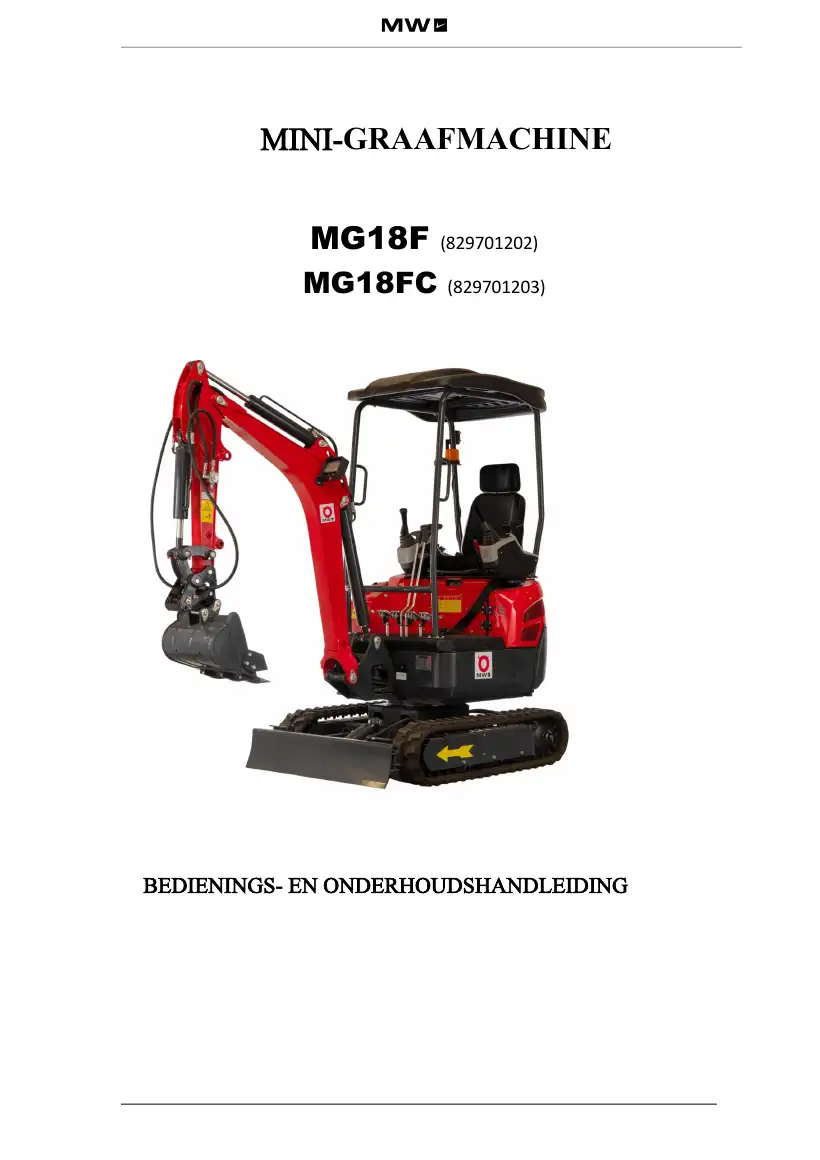

MW Tools Handleiding en onderdelenlijst MG18F64 pages · PDF · Free previewThis model

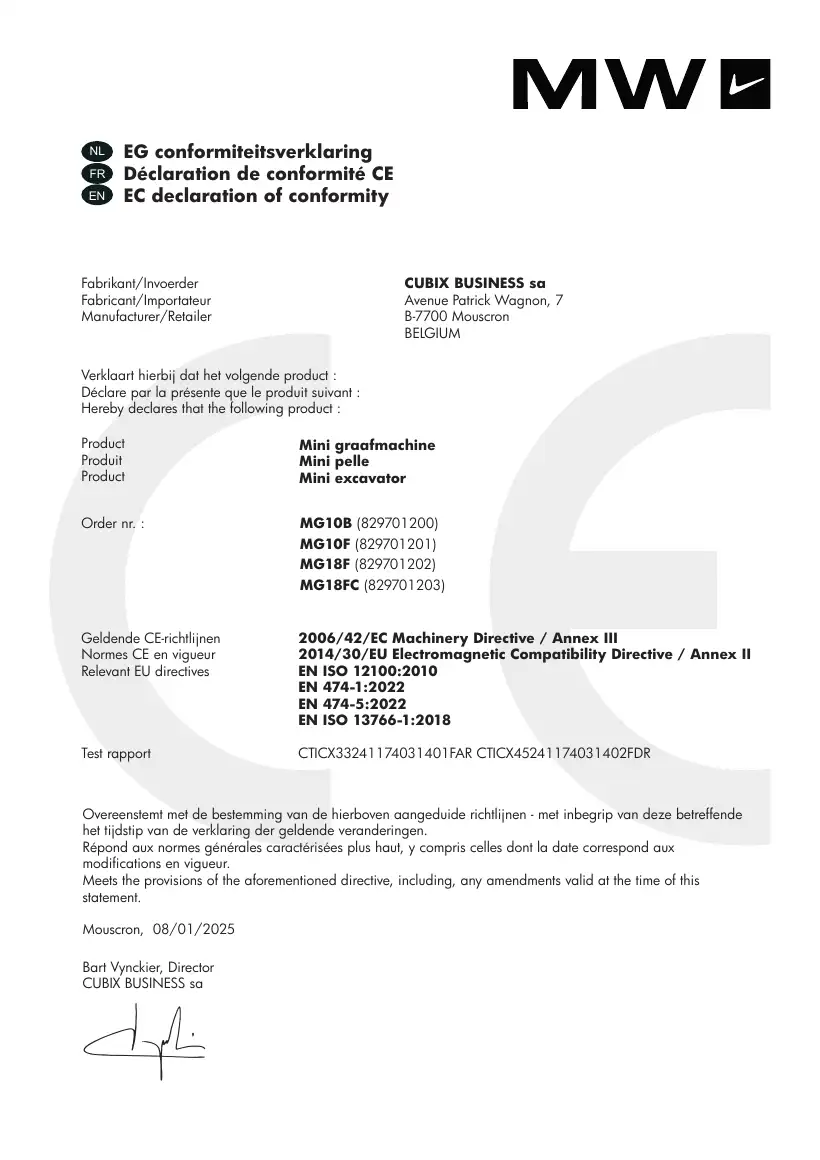

MW Tools CE MG10B MG10F MG18F MG18FC1 page · PDF · Free previewThis model
Send us a manualParts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Hydraulics
- 15 – 16 MPa (2,176 psi – 2,321 psi)
- Boom swing
- 75°/45°
- Operating weight
- 1,800 kg (3,968 lb)
- Engine
- Kubota D722
- Engine power
- 10.2 kW (13.7 hp)
- Max digging depth
- 2,050 mm (6 ft 9 in)
- Max digging reach
- 3,130 mm (10 ft 3 in)
- Overall width
- 1,100 mm (3 ft 7 in)
- Expanded track width
- 1,370 mm (4 ft 6 in)
- Bucket capacity
- 0.03 m³ (1.06 cu ft)
- Hydraulic flow
- 35 L/min (9.2 US gal/min)
- Working pressure
- 16 MPa (2,321 psi)
- Boom swing left
- 75°
- Boom swing right
- 45°
- Track size
- track length 1350 mm (4 ft 5 in)
- Fuel tank
- 9.7 L (10.2 US qt)
- Published price
- 10,979 EUR excl. BTW (regular 11,527.35)
