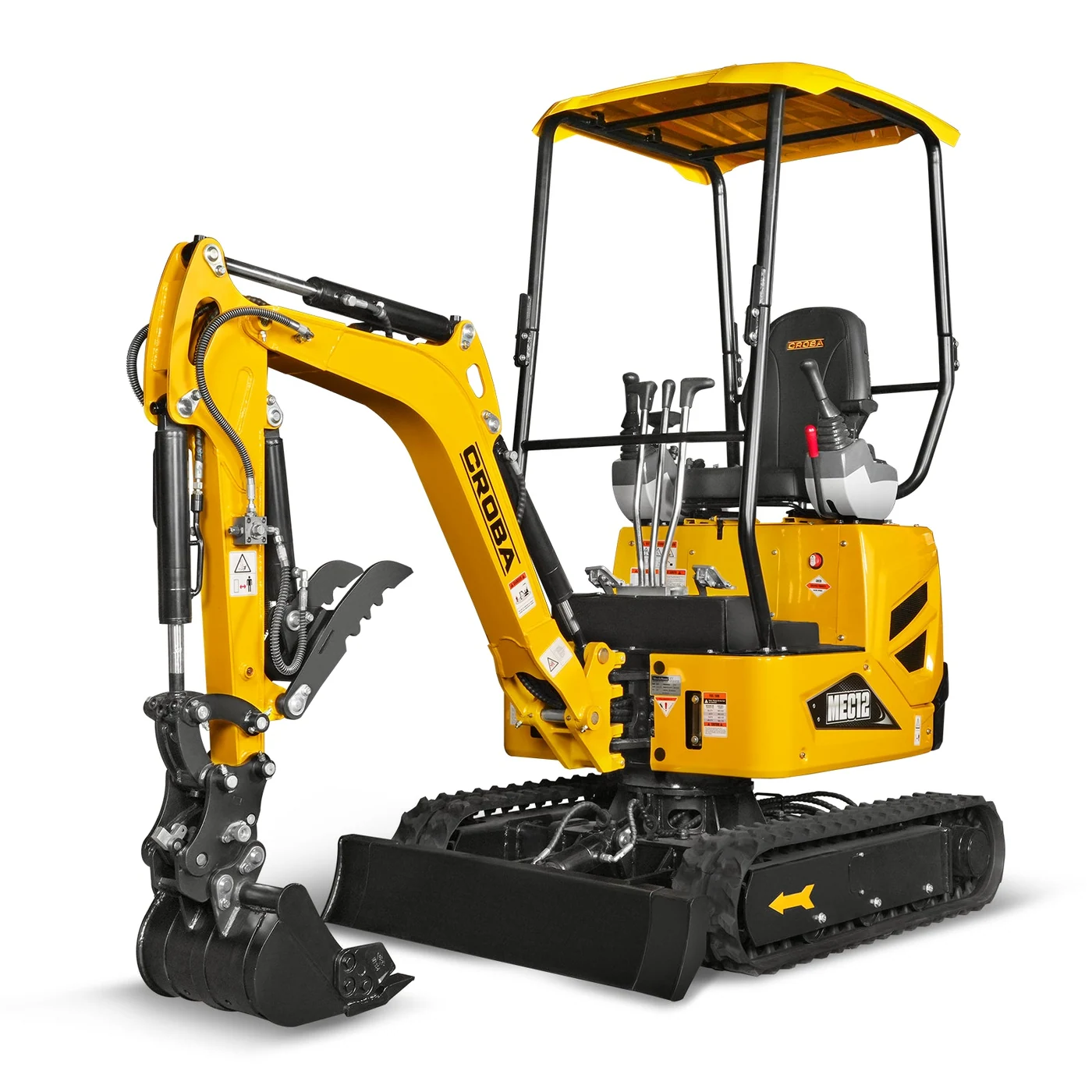

MechMaxx MEC12
Also listed as SKU 150532
1,225 kg2,701 lbOperating weight
Kubota D722DieselEngine
10.2 kW13.7 hpEngine power
65.7 in1,669 mmDig depth
876 mm (retracted)34.5 inWidth
17.6 L/min4.6 US gal/minHydraulic flow
Check your machine plate before ordering parts. How to find it
Manuals 0
No manual for the MEC12 yetHave one? We'll host it here for other owners.
Parts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Operating weight
- 2,700 lb (1,225 kg)
- Engine
- Kubota D722 13.7 hp (10.2 kW) 2500 rpm
- Hydraulic flow
- 4.65
- Fuel tank
- 2.4
- Bucket
- 0.7
- Tail swing radius
- 48.1 in (1,222 mm)
- Max dig depth
- 65.7 in (1,669 mm)
- Boom swing
- 53° L / 40° R
- Price
- 16,999
- Min track width
- 34.5 in (876 mm)
- Engine power
- 10.2 kW (13.7 hp)
- Max digging depth
- 1,669 mm (5 ft 6 in)
- Overall width
- 876 mm (34.5 in) (retracted)
- Bucket capacity
- 0.02 m³ (0.71 cu ft)
- Boom swing left
- 53°
- Boom swing right
- 40°
- Published price
- USD 16999 (sale
