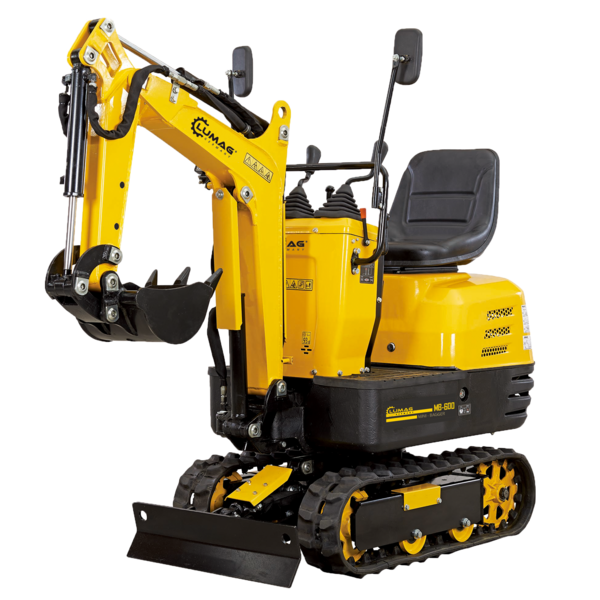

Lumag MB-600
Also listed as MB600
562 kg1,239 lbOperating weight
PetrolPetrolEngine
6.3 kW8.4 hpEngine power
18 L/min4.8 US gal/minHydraulic flow
17.5 MPa2,538 psiWorking pressure
0.011 m³0.39 cu ftBucket capacity
Check your machine plate before ordering parts. How to find it
Manuals 2

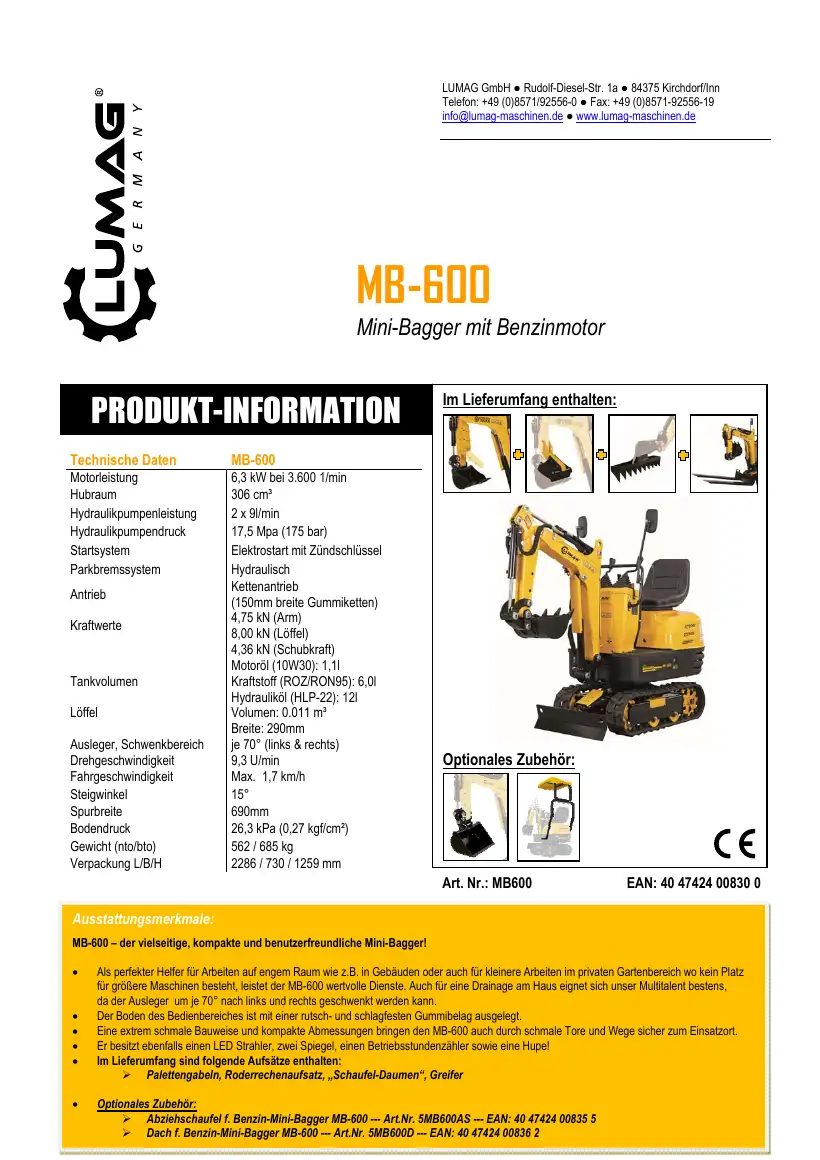

Lumag MB600 Datenblatt V32 pages · PDF · Free previewThis model

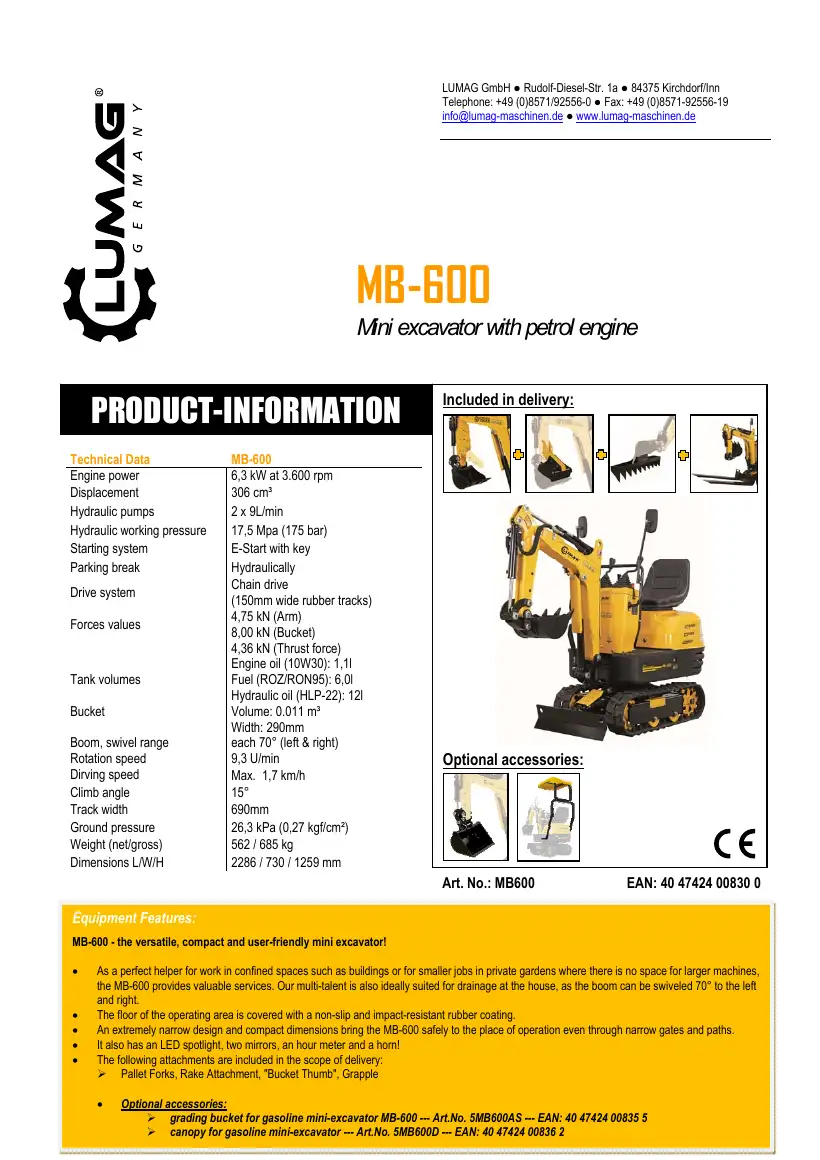

Lumag MB600 UK datasheet V32 pages · PDF · Free previewThis model
Send us a manualParts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Hydraulics
- 2x9 L/min (2.4 US gal/min)
- Operating weight
- 562 kg (1,239 lb)
- Engine
- petrol 306 cm³
- Engine power
- 6.3 kW (8.4 hp)
- Bucket capacity
- 0.011 m³ (0.39 cu ft)
- Hydraulic flow
- 18 L/min (4.8 US gal/min)
- Working pressure
- 17.5 MPa (2,538 psi)
- Boom swing left
- 70°
- Track size
- 150 mm (5.9 in) rubber
- Fuel tank
- 6 L (6.3 US qt)
- Published price
- dealers 5,499–6,599 EUR (not maker)
