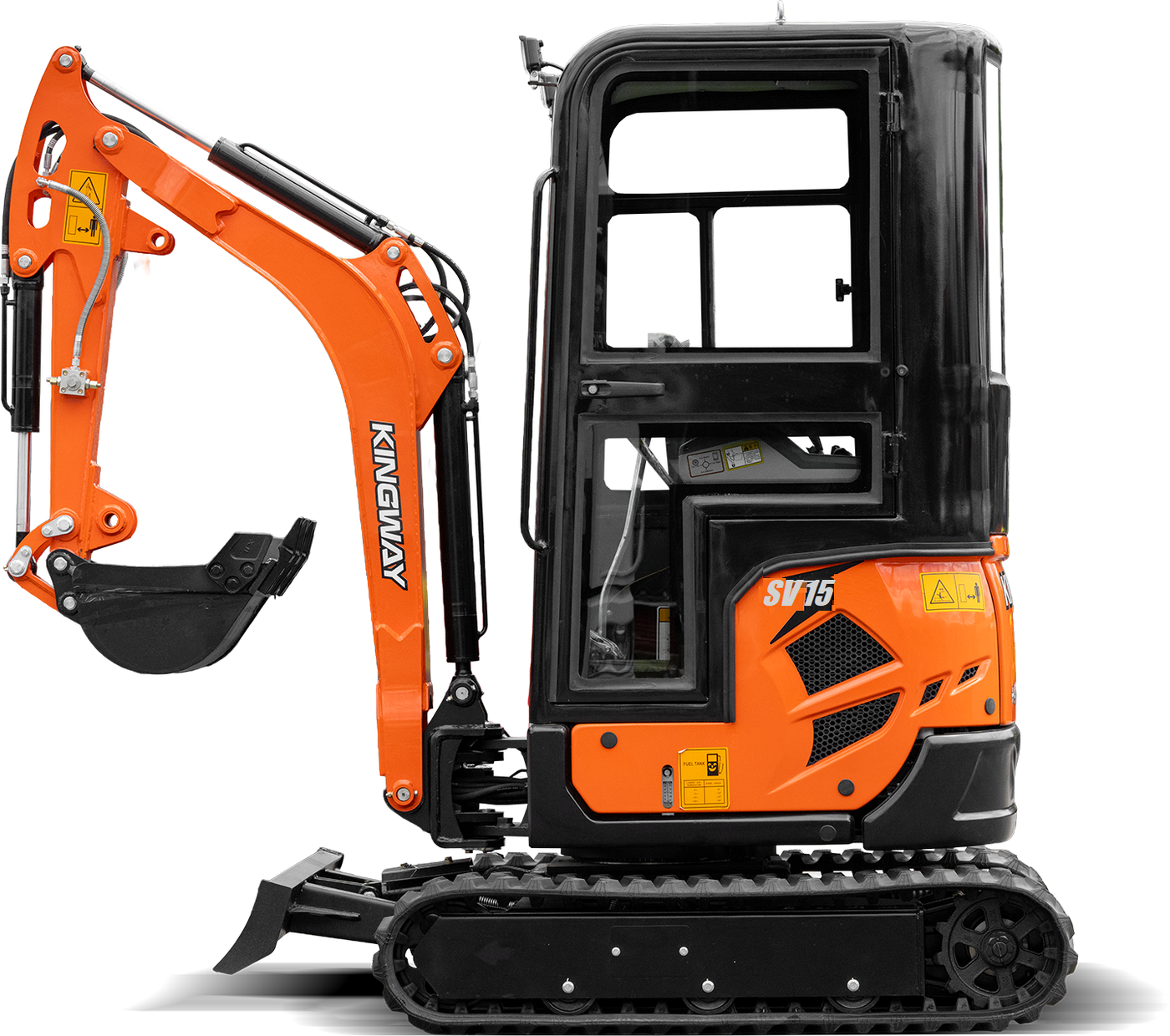

Kingway SV15 K
Also listed as VIP15 K RS
1,500 kg3,307 lbOperating weight
KubotaDieselEngine
18.8 kW25.2 hpEngine power
2,258 / 2,495 mm7 ft 5 in / 8 ft 2 inDig depth
1,100 mm3 ft 7 inWidth
3,417 mm11 ft 3 inReach
Check your machine plate before ordering parts. How to find it
Manuals 0
No manual for the SV15 K yetHave one? We'll host it here for other owners.
Parts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Alias
- VIP15 K RS
- Engine power
- 18.8 kW (25.2 hp)
- Hydraulics
- 36 L/min (9.5 US gal/min)
- Max dig depth
- 2,258 / 2,495 mm (7 ft 5 in / 8 ft 2 in)
- Track size
- 230x72x45
- Operating weight
- 1,500 kg (3,307 lb)
- Engine
- Laidong 3-cyl (Kubota option)
- Max digging depth
- 2,258 mm (7 ft 5 in)
- Max digging reach
- 3,417 mm (11 ft 3 in)
- Overall width
- 1,100 mm (3 ft 7 in)
- Bucket capacity
- 0.04 m³ (1.41 cu ft)
- Hydraulic flow
- 36 L/min (9.5 US gal/min)
- Working pressure
- 20 MPa (2,901 psi)
- Fuel tank
- 14.5 L (3.8 US gal)
- Published price
- 43,900 PLN net (Laidong)
Similar & related machines
No closely related machines recorded yet.
Mods for the SV15 K
All modsOperator cooling fanAdd a 12 V fan to move engine heat and fumes away from the seat.Fuel tank relocation & extra capacityMove a hard-to-reach tank or add capacity so you refuel less often.ThumbAdd a mechanical or hydraulic thumb to pick up rocks, logs and debris.Quick hitchSwap buckets and attachments in minutes instead of driving pins.Seat upgradeSwap the thin factory seat for a padded or suspension seat with a lap belt.LED work lightsAdd work lights for early starts, late finishes and dark sheds.
