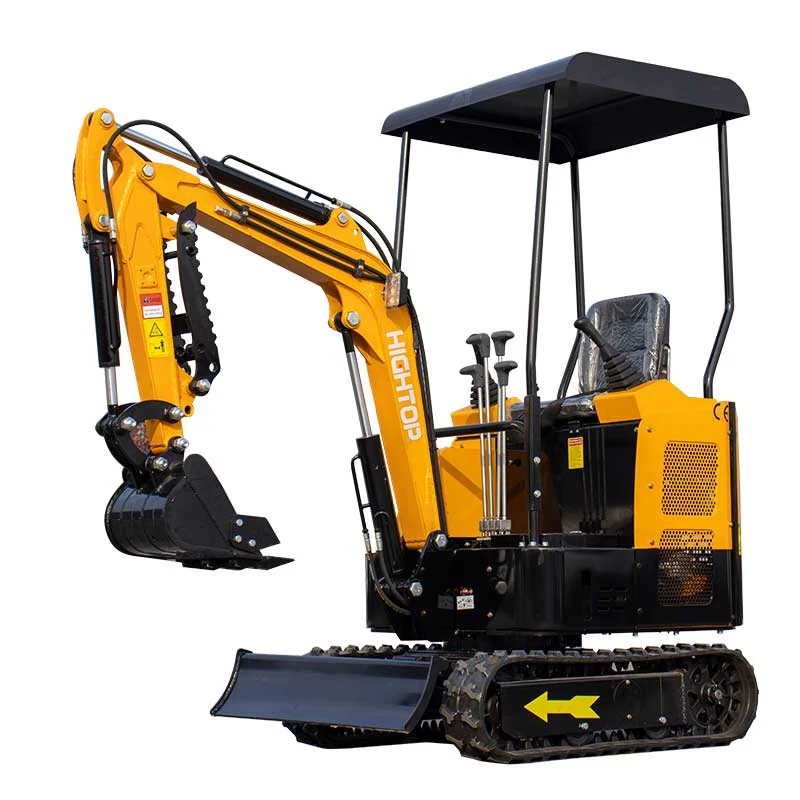

Hightop HT15
Also listed as HT15 Pro, HT15KS (separate pages)
1,500 kg3,307 lbOperating weight
Koop 292DieselEngine
15.5 kW @3000 rpm20.8 hpEngine power
47.24 mm in1.9 inDig depth
1,000 mm3 ft 3 inWidth
16 L/min4.2 US gal/minHydraulic flow
Check your machine plate before ordering parts. How to find it
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Weight
- 1,500 kg (3,307 lb)
- Engine
- Koop 292, 0.997 L
- Rated power
- 15.5 kW (20.8 hp) @3000 rpm
- Max digging depth
- 47.24 mm (1.9 in) in
- Chassis width
- 1,000 mm (3 ft 3 in)
- Tread
- 935 mm (36.8 in)
- Bucket
- 0.03 m³ (1.06 cu ft)
- Hydraulic flow
- 16 L/min (4.2 US gal/min)
- Hydraulic pressure
- 18 MPa (2,611 psi)
- Hydraulic tank
- 14 L (3.7 US gal)
- Crawler width
- 175 mm (6.9 in)
- Crawler length
- 1,235 mm (4 ft 1 in)
- Fuel tank
- 10 L (2.6 US gal)
- Tail swing radius
- 870 mm (34.3 in)
- Travel speed
- 2.4 km/h (1.5 mph)
- Operating weight
- 1,500 / 650 kg (3,307 lb / 1,433 lb)
- Engine power
- 15.5 kW (20.8 hp) @3000 rpm
- Track size
- 175 mm (6.9 in) rubber, length 1235
