Haihong CTX8010
1,200 kg2,646 lbOperating weight
Koop 499DieselEngine
12 hp@3600rpm8.9 kWEngine power
1,948 mm6 ft 5 inDig depth
896 mm (overall dim)35.3 inWidth
2,703 mm8 ft 10 inReach
Check your machine plate before ordering parts. How to find it
Manuals 1

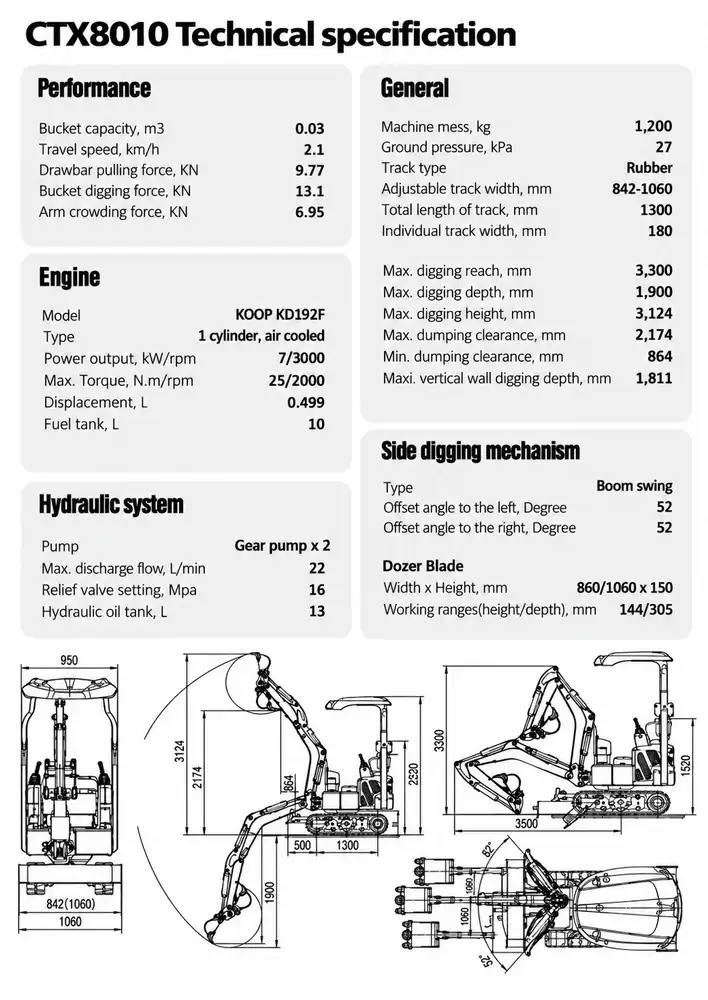

Haihong CTX8010 Mini Excavator Technical Specification (image)1 page · Document · Free previewThis model
Send us a manualParts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Manufacturer
- SHANDONG HAIHONG HEAVY INDUSTRY CO.,LTD.
- Operating weight
- 1,200 kg (2,646 lb)
- Engine
- KOOP 1-cyl diesel 0.499 L
- Rated power
- 12 hp (8.9 kW)@3600rpm
- Pump flow
- 16 L/min (4.2 US gal/min)
- Controls
- seat-mounted pilot joysticks, twin hydraulic pumps
- Overall dimensions
- 2,550 mm (8 ft 4 in) x 896 x 2170
- Track width std
- 910 mm (35.8 in)
- Track width adjustable
- 860 – 1,050 mm (33.9 in – 3 ft 5 in)
- Boom swing angle
- 40°
- Max dig depth
- 1,948 mm (6 ft 5 in)
- Max reach ground
- 2,703 mm (8 ft 10 in)
- Bucket width
- 340 mm (13.4 in)
- Price
- 11,990 incl GST
- Engine power
- 8.9 kW (11.9 hp)
- Overall width
- 896 mm (35.3 in) (overall dim)
- Bucket capacity
- 0.025 m³ (0.88 cu ft)
- Track size
- 180 mm (7.1 in) wide
- Published price
- AUD 11,990 incl GST (pkg 1)
