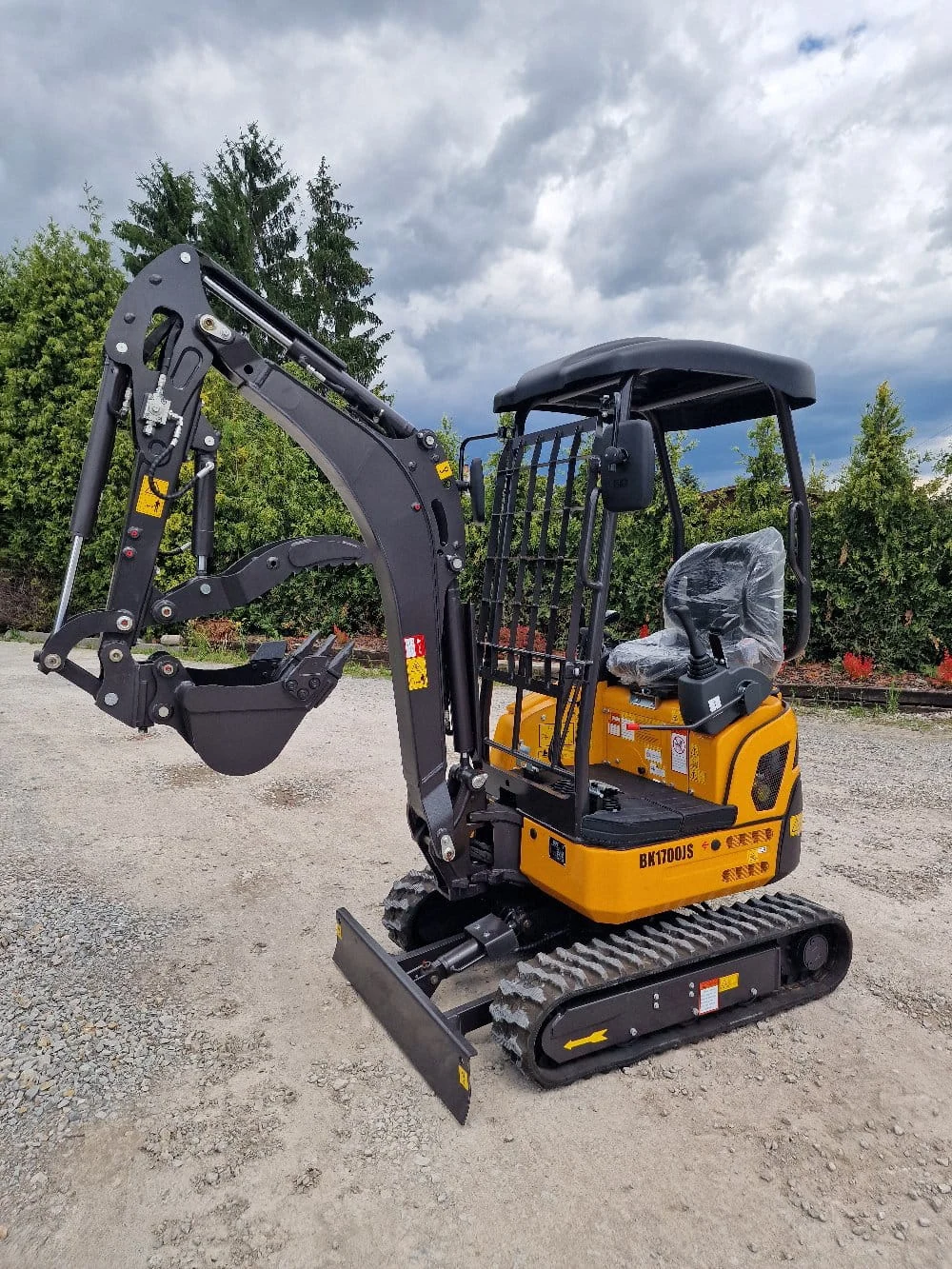

Berger Kraus BK1700JS
1,600 kg3,527 lbOperating weight
Kubota D902DieselEngine
11.2 kW15 hpEngine power
2,200 mm7 ft 3 inDig depth
1,100 mm3 ft 7 inWidth
3,640 mm11 ft 11 inReach
Check your machine plate before ordering parts. How to find it
Manuals 0
No manual for the BK1700JS yetHave one? We'll host it here for other owners.
Parts 0
No part numbers recorded yetSend a photo of the part and your machine plate and we'll help identify it.
Fix a problem 5
Cranks but won't startFuel filter, glow plugs, safety lever
Hydraulics slow or weakFluid, filters, relief valve
Cold-weather startingBattery, fuel gelling, warm-up
Tracks keep coming offTension, idlers, sprockets
Upper won't swing or clunksSwing motor bolts, gear, grease
All troubleshootingSpecifications
- Engine
- Kubota D902 11.2 kW (15 hp)
- Hydraulics
- 39.6 L/min (10.5 US gal/min)
- Operating weight
- 1,600 kg (3,527 lb)
- Engine power
- 11.2 kW (15 hp)
- Max digging depth
- 2,200 mm (7 ft 3 in)
- Max digging reach
- 3,640 mm (11 ft 11 in)
- Overall width
- 1,100 mm (3 ft 7 in)
- Bucket capacity
- 0.027 m³ (0.95 cu ft)
- Hydraulic flow
- 39.6 L/min (10.5 US gal/min)
- Working pressure
- 20 MPa (2,901 psi)
- Track size
- 230 mm (9.1 in) rubber
- Fuel tank
- 18 L (4.8 US gal)
- Published price
- 53,900 PLN net (regular 61,900)
