Service manual
Yanmar TNV IDI service manual 0BTNV-U00200
275 pagesPDF20.9 MB
For Takeuchi TB216Yanmar ViO17 / ViO17-1SANY SY16C

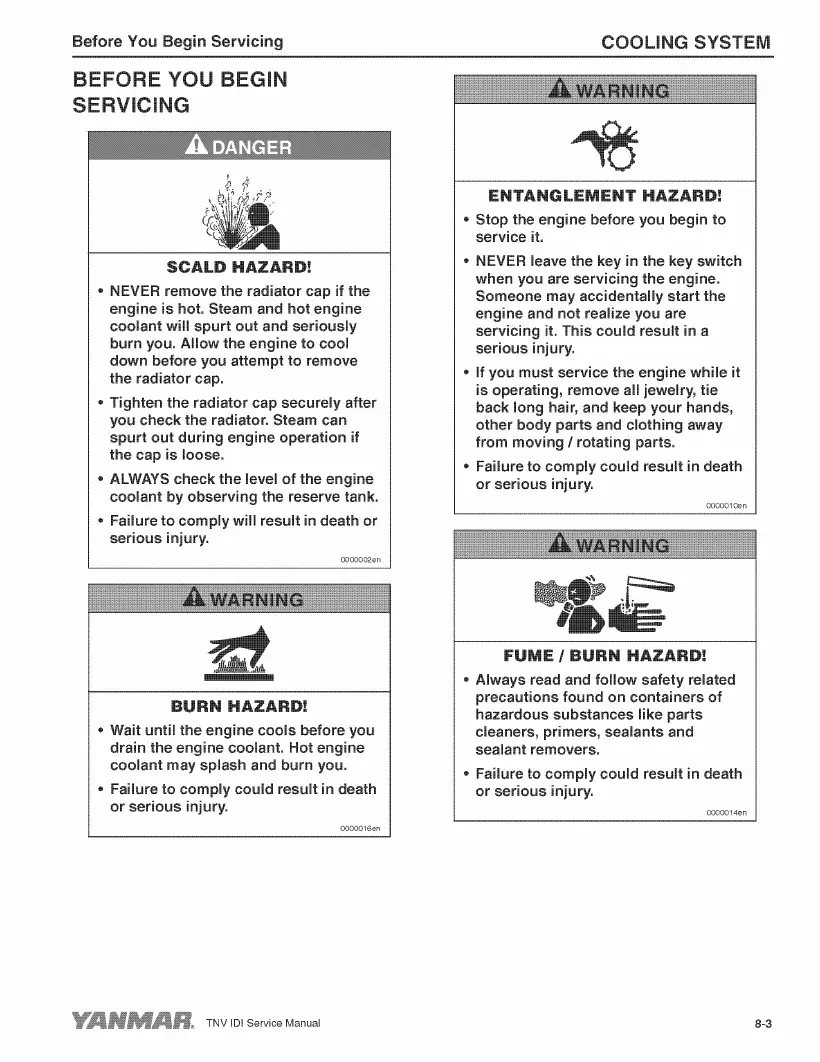

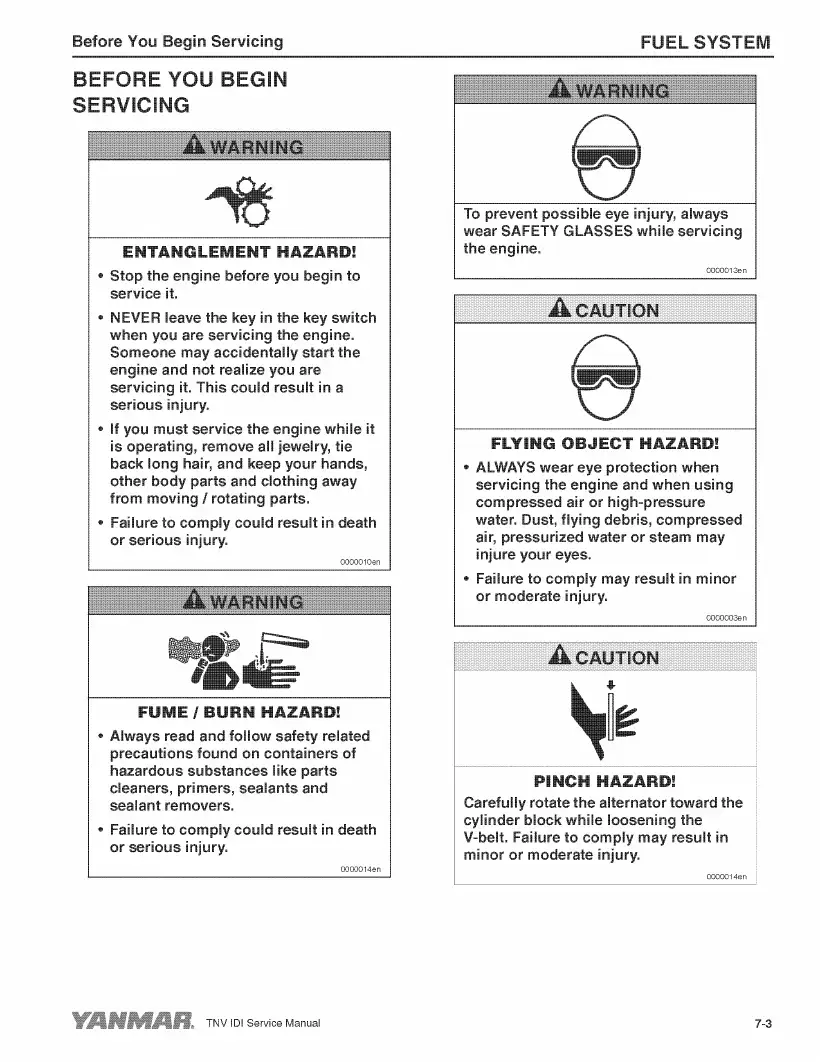

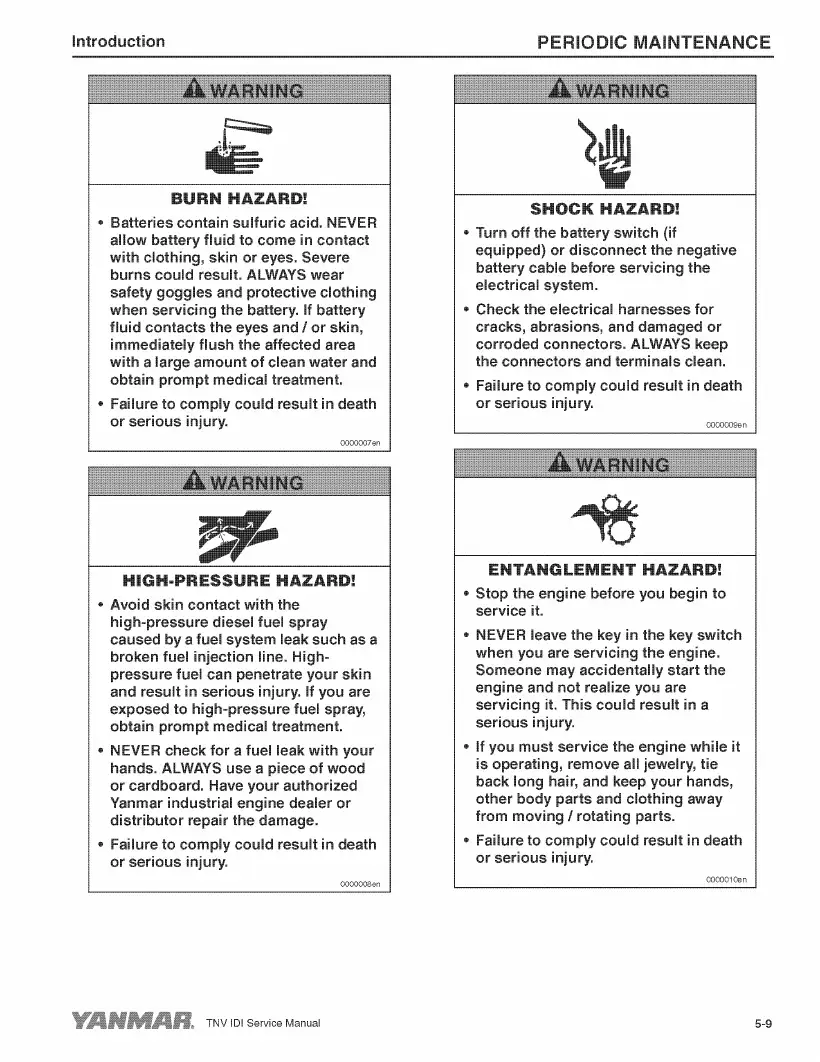

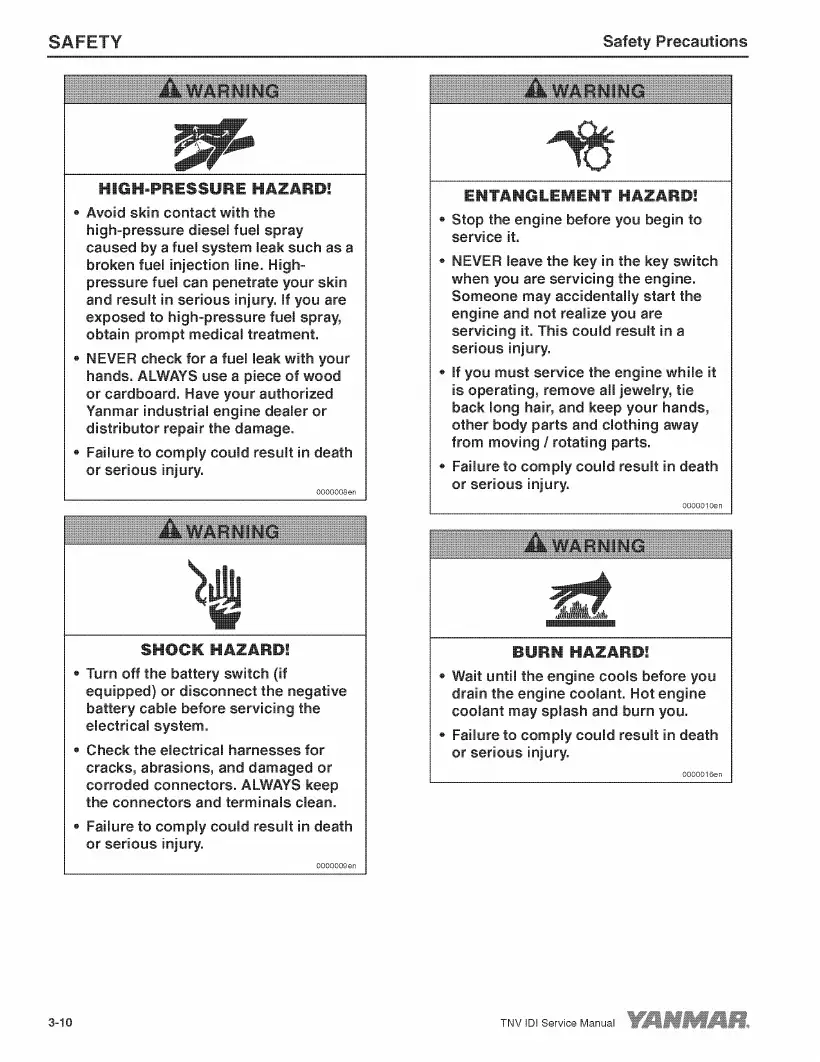

Get the full manualPreview · 5 of 275 pages
270 more pages in the full PDF. Get the full manual
What it covers
- engine_only
- maintenance
- service
- engine_electrical
About this document
Engine-family reference for 2TNV70/3TNV70/3TNV76 only. Conditional for TB216 2160-series, ViO17-1 3TNV70-XBV and legacy/global SY16C 3TNV70; exact installed suffix/accessory applicability unverified. Does not cover 3TNV74 or 3TNV80F. Scanned primary engine-maker manual at equipment-integrator host. Visually checked selected pages. PDF273/13-6 introduces quick-reference table, but PDF274 is contact page: complete general troubleshooting chart not present in this copy. Compression-diagnosis section is present. Dynamo diagram is engine accessory reference, not excavator wiring.
Confirm your machine plate, market, build year and fitted engine before relying on any reference.
